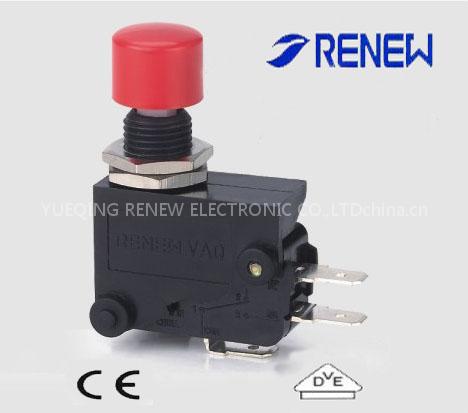

MINI MICRO SWITCH

Item Type

RV-21, RV-16, RV-11

RV-3

Allowable operating speed

0.1mm~1m/sec(pin plunge type)

Allowable operating frequency

Mechanical 600times/min

Electrical 30times/min

Insulation resistance

Above 100 mΩ (use the DC500V insulation resistance test)

Contact resistance (initial value )

Max 15mΩ

Max 30mΩ

Dielectric strength

Between the non-connect terminal

AC 1000V 50/60HZ 1min

Between non voltage metal parts and each terminal

AC 2000V 50/60HZ 1min

Between the grounding and the each terminal

Vibration resistance

Malfunction

10-55HZ double amplitude 1.5mm(contact gap is less than 1ms )

Shock resistance

OF 0.49N type: less 98m/s2

OF 1.96N,3.29N type :less 294m/s2

OF 0.98 N type : 196m/s2

Life

Mechanical life (order OT)

100,000 times above (frequency is 20times/min)

Electrical life(resistive load )

300,000 times above (frequency is 20times/min)

Ambient operation temperature &humidity

-25~+80(with no icing )

under the 85%RH (+5~35)

Contact material

AgNi alloy ; AgCdO alloy (not in the ROHS order )

Weight

About 6.2g(pin plunger type )
