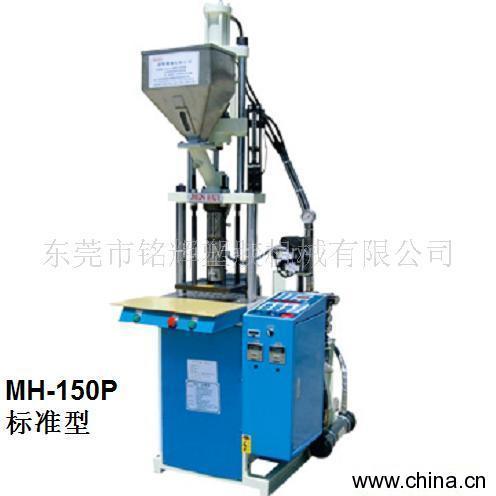

MH-150P Standard Vertical Plastic Injection Machine

Specification of MH-150P Standard Vertical Plastic Injection Machine:
1. Vertical mold-shut and vertical injection, apply to enchase molding
2. East mold-close, safety and low pressure moid-lamping, usual auto mold-open and special safety design.
3. Automatic malfunction display, easy to maintain.
4. Adopt name-plate parts for electrical control and pressure, quiet, precise, long-lasting
5. Multi-temperature control, multi-injection pressure, speed, back-pressure all can adjust boundless, fit for the precise plastics to formation
6. Have the produce hydraulic prop-out setting

Technical Parameters of MH-150P Standard Vertical Plastic Injection Machine:
1. Ecto-red-line safety setting
2. Mold automatic thermostatic setting
3. Leak-proof spring performance
4. Automatic oven dry and filled setting
5. Slipping mold-bracker
6. Full-computer-screen
7. Double proportion oil-pressure control

Model		Unit	MH-150
injection unit	screw diameter	Mm	26	28
	injection pressure	Kg/cm2	1715	1098
	theorfical shot volume	Cm3	40	47
	max. shot weight (ps)	g/0z	45/1.5	52/1.8
	injection rate	cm3/sec	35	43
	screw stroke	mm	110
	screw speed max.	rpm	0-215
	nozzle contract force	Tons	-
	nozzle stroke	mm	-
	number of temperature control		2
clamping unit	clamping force	Tons	15
	platen size	mm	450*250
	distance between tie bare	mm	310
	min. mold height	mm	100/40
	opening stroke	mm	190
	max. open daylight	mm	290/230
	ejector force	Tons	1.3
	ejector stroke	mm	35
electric unit	max. hydraulic pressure	Kg/cm2	140
	pump output	L/min	23
	oil resservoir capacity	L	75
	cooling water consumption	L/h	400-600
	pump motor power	kw	2.2 (3HP)
	borrl heating power	kw	2
	total weight	kw	4.2
other	machine weight	kg	650
	machine dimension	M	1.15*0.75*2.15
	shipping weight	kg	800
	shipping dimension	m	1.4*1.0*2.3
