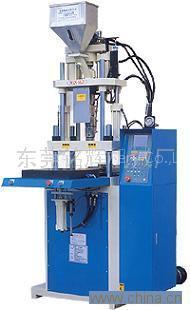

MHV-1000 Mono-mould Pad Plastic Injection Machine
Specifications
- Brand
- Minghui
- Origin
- Guangdong, China
MHV-1000 Mono-mould Pad Plastic Injection Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Minghui; Origin: Guangdong, China.
Product Description
Features of MHV-1000 Mono-mould Pad Plastic Injection Machine:1. Top mould is fixed while bottom one is rolling, vertical mould turn off, vertical shot.2. One top and two bottom mould could be installed. Single or multi-operator, with more convenience and security. According to different products, two, three-terminal or multistation could be choosen.3.
Turntable gear transmission, steady, non-noise, double security, high precision and efficiency.4. Vertical switch mould and shot, which applies to the insert molding.5. Compound die quickly, low pressure safe locked mode, automatic break the mould in unusual case, special security design.6. Automatic failure display, easy adjusting and detection.7.
The electrical controller and hydraulic pressure adopts import brand parts which is quiet, precision and durable.8. Composite temperature controller, composite shot pressure, the shot speed and back pressure Continuous adjusting, suit for the precision plastic parts forming.9. Finished product hydraulic pressure liftout attachment.10.
Security, speediness, durability, stabilizationModel: MHV-850-1S Compound die force: 100tonScrew diameter: 42, 45, 50mm Shot weight: 189, 224 268 g/ozScrew turning speed: 0-175rpmWeight: 6500kgOpening stroke: 200mmMainly power: 15kwMachine dimension: 2800*1800*4700mm
