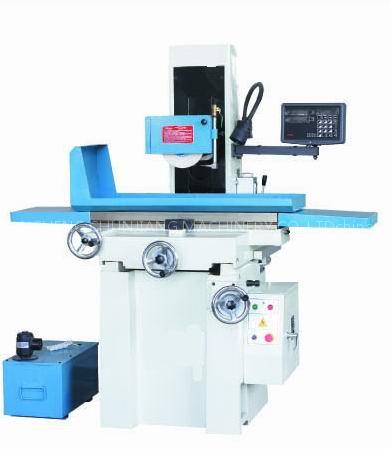

M250 Manual Surface Grinder
Specifications
- Origin
- China (Mainland)
M250 Manual Surface Grinder is a Bath Brushes, Sponges & Scrubbers product. Key specs — Origin: China (Mainland).
Product Description
Technical Parameters | Units | M618A | M820 | M1022 | |
Max.workpiece to be Ground | mm | 420×190×335 | 520×220×490 | 560×250×490 | |
Max. Grinding Length | mm | 430 | 530 | 580 | |
Max. Grinding Width | mm | 190 | 220 | 260 | |
Distance From Table Surface To Spindle Center | mm | 335 | 490 | 450 | |
Slide way | V-type rail with Steel-ball | V-type rail with Steel-ball | V-type rail with Steel-ball | ||
V-type rail with Steel-ball | Kg | 100 | 200 | 150 | |
Table Size (L×W) | mm | 400×180 | 480×220 | 550×250 | |
Number of T -Slot | mm×n | 12×1 | 12×1 | 12×1 | |
Speed OF Working Table | m/min | 3-23 | |||
Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
Wheel Size (dia.×width×bore ) | mm | 180×13×31.75 | 200×16×31.75 | 200×16×31.75 | |
Spindle Speeds | 50Hz | rpm | 2850 | 2850 | 2850 |
Spindle Motor | Kw | 1.1 | 1.1 | ||
Coolant Pump | Kw | 0.4 | 1.5 | 1.5 | |
Minimum of Numerical Display | mm | 3 | 0.4 | ||
Machine Size (L×W×H) | mm | 1550×1060×1590 | 1680×1140×1800 | 1800×1400×1800 | |
Packing Size (L×W×H) | mm | 1060×1170×1870 | 1140×1630×1960 | 1200×1340×1960 | |
GrossNet | T | O.80 0.70 | O.85 0.75 | O.85 0.90 | |
