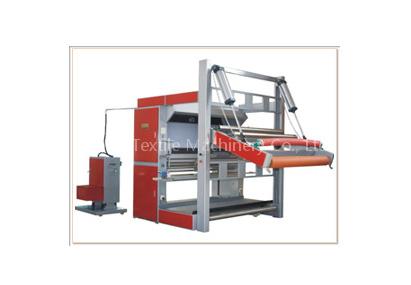

M204T Inspection & Rolling Machine

Purpose of M204T Inspection & Rolling Machine: M204T inspecting-rolling machine is mainly applied in textile mill, dyeing plant, etc, to inspect large fabric roll (including A-frame) synchronously and with costant tension by directly connect to the power unit of the machine.

(The A-frame used for winding and unwinding should be prepared by customers, and its central height should be same).Features of M204T Inspection & Rolling Machine:1)PLC controls machine running.

2)Frenquency variation and stepless speed adjustment.3)Photoelectric device for automatic edge-alignment.4)Photoelectric device for machine stop when no fabrics.5)Electronic length counter (allows to count, fix and totalize the length in meter, yard as well as display the rolling speed). 6)Sampling could be according to customers requirement.

7)Upper-lower locking function and cloth-connection function when sampling.8)May be optionally fitted with a computer interface. 9)May be optionally fitted with an imported or China- made automatic cutter. 10)May be optionally fitted with an imported or China- made length device and printer. Sepcifications of M204T Inspection & Rolling Machine:Model No. M204T

Max winding diameter 1700mm

Max unwinding diameter 1700mm

Working width 1800mm-2400mm(at choice)

Rolling speed 5-40m/min (stepless)

Edge-ailiging error for winding ≤10mm

Dimension (L×W×H) 4800×2550×3000mm

Weight 1200kg（204TYPE）

Note: Working width up to 4000mm
