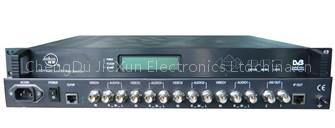

Lowest price Low Rate Encoder

Description: After data processing, the multiplexed TS will be output through DVB ASI interface and IP.

Outline After data processing, the multiplexed TS will be output through DVB ASI interface and IP. features MPEG-2 Standard Support Video VBR and CBR encoding Support extremely low MPEG-2 Video compact encoding and MPEG-4 encoding Video encoding bit rate: 1-7Mbps Support dynamic bit rate control of moving picture(Channel3 and channel4) Support MPEG-2 stream multiplexing Create PSI/SI information Has 4 independent A/V input connectors Has 4 independent A/V encoding Individual output of 1-4 channel stereo multiplexing TS stream.

Multi A/V stream combinating method Multi-programme multiplexing output TS stream LCD display, easy operation Support remote network control Support TS OVER IP output Technical Specifications Composite video signal Video System: NTSC(525/60) or PAL(625/50) optional Connector: BNCImpedance: 75W, unbalance Frequency: 25Hz~5.75MHz Level: 1.0Vp-p, Sample frequency: 27MHz Analog audio signal Connector: BNC(unbalanced) Impedance: 600W, Input: one stereo or two mono.Output bit rate: 32kbps~384kbpsA to D accuracy:16bits Sample frequency: 32/44.1/48KHz Meet International standard ISO 11172(MPEG-1)and ISO 13818(MPEG-2)MPEG-2 encoding impliments 4:2:0 Support MPEG-4 Level 5 ASPOutput bit rate 1-7Mbps continuous adjustment Support VBR and CBR encoding Support open, close and various flexible GOP structure, I, IP, IPB.MPEG-2 self-adapting field frame(AFF)MPEG-2 field base(FB)Pattern: DVB standard transporting stream(TS) Impliments MPEG-1 II level, CD quality Audio sampling frequency:32KHz,44.1KHz,48KHz Audio bit rate:64Kbps, 128Kbps, 192Kbps, 256Kbps, 384Kbps Support 4channel stereo or double channels DVB standard TS Standard CCIR601; Compatible to 1/2D1, 2/3D1, 3/4D1, Full D1eGN.PAL: 720*576,544*576,480*576,352*576NTSC: 720*480,544*480,480*480,352*480 DVB Standard Connector:BNC Impedance:75Ω Packet format:188 byte Data rate:1.5~9Mbps Management Interface IEEE802.3 ETHERNET,RJ45 interface Software protocol: SNMP protocol Of Power Off The encoder will keep status with the power being cut off, in order to auto-reset when electrified again.

Power Supply 90V~250V A.C, 50Hz ±2%, 20W Environment 5—45°C for operation-25—55°C for storage10~75% for relative humidity and Safety GB13837-92 AND GB8898-88 Dimension:44.5mm(1U)*483mm*(19.0”)*300mm Weight 5kg Specification and picture are for reference only, the actual item is the standard,welcome to consult.
