Listing ID#10095445
CategoryOther Plastic & Rubber Machinery

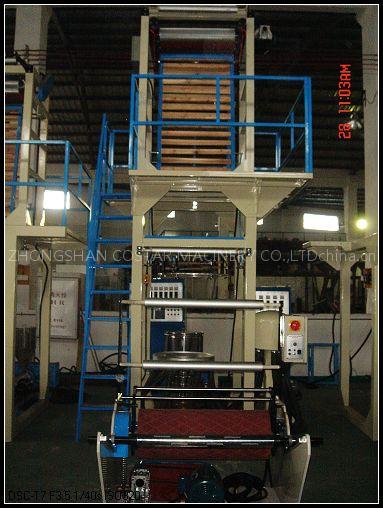

Low Pressure and High Density Film Blowing machine
Specifications
- Brand
- Kezhida
- Origin
- China
Quick answer
Low Pressure and High Density Film Blowing machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Kezhida; Origin: China.
Product Description
| NO. | Desciption of Film Blowing machine | SJ50-800 LDPE | 　 |
| 1 | Gear box of Film Blowing machine | 146 | |
| 2 | Product raw material | LDPE/HDPE/LLDPE | |
| 3 | Film layflat width mm | 100-750 mm | |
| 4 | Film thicknes mm | 0.01--0.15 mm | |
| 5 | Screw diameter l/d mm | Φ50 mm×1500mm | |
| 6 | Screw/barrel material | 38 CRMOALA | |
| 7 | Die headφ mm | Φ180mm LDPE | |
| 8 | Thermo control zone（schneider electric) | 5 SET | 　 |
| 9 | Thermo control of barrel°C（schneider electric) | 3 SET | |
| 10 | Thermo control power die°C（schneider electric) | 2 SET | |
| 11 | Heating power of Film Blowing machine kw | 19 kw | |
| 12 | Brrel cooling fan kw | 0.12 kw | |
| 13 | Main motor power kw | 18.5KW | |
| 14 | Air ring diameter mm | Φ360mm | |
| 15 | Max.output capacity kg/hr | 50 kg/hr | |
| 16 | Rubber pad air bolwer power kw | 2.2kw | |
| 17 | Take up motor kw | 1.5KW | |
| 18 | Take up speed m/min | 0-80m/min | |
| 19 | Rewingding roller length mm | 800mm | |
| 20 | Winding diameter mm max | φ700mm | |
| 21 | Winder method | Friction winder | |
| 22 | winder motor | 80kg | 　 |
| 23 | Measurement H*W*Lmm | 4300mm | |
