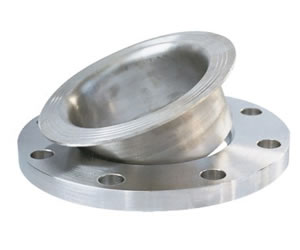

Loose Plate Flange
Specifications
- Origin
- CHINA
- Price Term
- EX-Work
- Payment Term
- T/T
Loose Plate Flange is a Pipe Fittings product. Key specs — Origin: CHINA; Price Term: EX-Work; Payment Term: T/T.
Product Description
Based on different connection means between flanges and pipes, flange can be divided into 5 main types, which are weld neck flange, threaded flange, socket weld flange, loose plate flange, and slip on weld flange. Among them, loose plate flange is a combination of two types of flanges.
Industrial Processes Die forging, Machining
Industries Served Power generation, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy
1. Loose Plate Flange(Butt Welding)
Size Loose plate flange: 3/8"～48" DN10～DN1200
Pressure American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500 European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40
Flange Facing Types American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ) European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove)
