Specifications

Product Description

Features:

Technical Parameter:

Rated Load	0.3,0.5,1,2,3,5,7.5,10,15,20,25t	Insulation Resistance		≥5000MΩ
		Operating Temperature		-40~+80â„ƒ
Sensitivity	2.0/3.0±0.002mv/v	Safe Overload		150%F.S
Total Error	±0.02%F.S	Ultimate Overload		300%F.S
Creep(30min)	±0.02%F.S	Recommended Excitation Voltage		10~12V(DC)
Zero Balance	±1%F.S	Max Excitation Voltage		15V
Temperature Effect On Zero	±0.02%F.S/10â„ƒ	Protection Class		IP67
Temperature Effect On Rated Output	±0.02%F.S/10â„ƒ	Material	Alloy Steel / Stainless Steel
Input Resistance	400±10Ω	Cable	Length: 6~12m;Diameter: Ä€6mm
Output Resistance	350±5Ω	Exc+: Red;Exc- :Black;Sig+: Green;Sig-: White

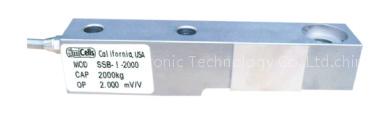

Load Cell
