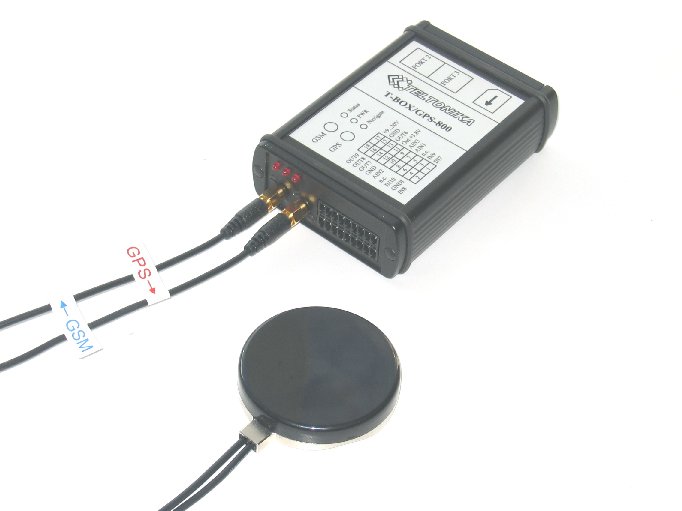

Lithuania T-Box / GPS-800

Specifications: Short description: T-Box/GPS-800 is a terminal with GSM and GPS connectivity, which is able to get device coordinates and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed.

It is important to mention that T-Box/GPS-800 has additional inputs and outputs, which let you control and monitor other devices on remote objects. Apart from that, the device is fully programmable, so you can load a special JAVA IMlet and perfectly adapt it for your needs.

The main features are: - Track your remote objects (trucks, cars, ships etc) quickly and easily. - The device supports the following GSM bearers: - EDGE class 2* (up to 118,4 kbps), - GPRS class 6* (up to 56-114 kbps), - HSCSD (up to 43,2 kbps), - CSD (up to 14,4 kbps), - SMS (text/data), - USSD (data). - As a lot of connection types are supported, you can choose one according price, reliability, speed or ease of use.

Dual-band: - European (and Asian) version - 900 MHz / 1800 MHz, - American version - 850 MHz / 1900 MHz. - The aluminium case (dimensions excluding connectors LxWxH 117 mm x 85,5 mm x 35 mm) of the device is very robust and perfectly suitable for installation into harsh environment such as cars, trucks, boats or other moving objects. - T-Box/GPS-800 has 4 digital inputs, 4 digital outputs and 3 analog inputs, which could be used for performing tasks on remote objects, such as monitoring fuel tank level, temperature, engine status, or controlling truck door etc. - T-Box/GPS-800 is an open architecture device, which is fully programmable, so if you want to perform a very special task, you can totally adapt the device for your needs by writing your own JAVA IMlet or asking our technical staff to make it for you.

TCP/IP and UDP stacks are integrated. - AutoPIN feature enters the PIN code each time the device is turned on, while SIM card is still protected with code. - Combined GSM and GPS antenna saves space on vehicle. - 3 LED indicators: , and . - An advanced solution for a very reasonable price. * A new edition of T-Box/GPS-800 with EDGE class 6 and GPRS class 10 will available in the Q4 2004.

Service availability and maximum speed depends on your GSM operator. Applications: - Tracking remote objects, - Monitoring and controlling devices on remote objects.

Connectors: - GPS antenna connector (SMA), - GSM antenna connector (SMA), - 2x RS232 ports with RJ45 jacks (under cover), - 2x FMC 1,5/9-ST-3,5 connectors for power supply, inputs and outputs, - SIM card slot,
