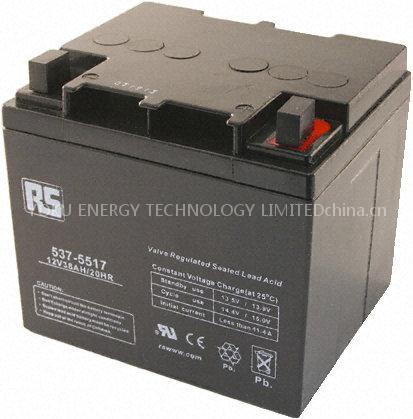

Lead acid battery
Listing ID#10039392
CategoryElectrical Equipment & Supplies
Electrical Equipment & Supplies

Lead acid battery

Specifications

Origin
China (Mainland)
Request Quote
Quick answer

Lead acid battery is a Electrical Equipment & Supplies product. Key specs — Origin: China (Mainland).

Product Description

Model Nominal
Voltage
(V)		 Capacity
(AH)		 Internal
Resistance
m		 Dimensions(mm) Terminal Weight
±4%(Kg)
Length Width height Total
Height		 Type Position
FP203 2 0.3 80 17.5 6.5 68 68 Tab G 0.02
FP205 2 0.5 60 17.5 8.5 68 68 Tab 0.03
FP245 2 4.5 8.5 46 25 100 106 T1 0.28
FP250 2 5 8 0.3
FP260 2 6 7 51 33 99 105 T1 G 0.36
FP270 2 7 6.5 0.38
Fp2150 2 15 3.5 70 47 101 107 T1 A 0.8
FP405 4 0.4 130 39 14 50 50 Tab G 0.07
FP408 4 0.8 110 35 22 64 71 E 0.1
FP420 4 2 22 45 33.5 75 81 T1 C 0.26
FP430 4 3 17 66 33.5 75 81 T1 C 0.38
FP432 4 3.2 22 90 34 60 66 T1 C 0.44
FP434 4 3.4 20 0.46
FP440 4 3.3 30 32 32 135 146 T1 C 0.35
FP445 4 4.5 15 48 48 102 108 T1 D 0.5
FP445A 4 4.5 15 48 52 94 99 T1 C 0.55
FP4100 4 10 8.5 102 44 95 101 T2/T1 C 1.05
FP4200 4 20 6.5 149 43 154 165 T3 D 2.25
FP605 6 0.4 180 57 14 51 51 plug G 0.1
FP610 6 1 54 51 42 51 57 T1 A 0.25
FP612 6 1.2 50 97 24 52 58 T1 C 0.29
FP623 6 2 40 43 37 76 76 Tab L 0.34
FP628 6 2.8 25 66 33 97 104 T1 A 0.49
FP628A 6 2.8 26 66 33 100 106 T1 A 0.49
FP632 6 3.2 30 134 35 61 67 T1 C 0.63
FP634 6 3.4 26 0.65
FP632A 6 3.2 26 67 34 118 124 T1 A 0.61
FP632B 6 3.2 30 125 33 61 67 T1 C 0.61
FP635 6 3.5 35 194 25 50 56 T1 C 0.62
FP640 6 4 28 70 47 101 107 T1 A 0.7
FP645 6 4.5 25 0.75
FP650 6 5 20 0.83
FP660 6 6 20 0.92
FP640A 6 4 28 70 47 101 106 Tab A 0.7
FP645A 6 4.5 25 0.75
FP640B 6 4 28 70 47 102.5 103 T1 A 0.7
FP645B 6 4.5 25 0.75
FP640K 6 4 28 70 47 98 104 T1 A 0.7
FP645K 6 4.5 25 0.75
FP640WA 6 3.6 55 39 39 150 150 plug 0.62
?FP640WB 6 4 50 194 25 62 62 plug --- 0.73
FP649 6 4.9 35 242 35 47 47 plug N 0.9
FP650A 6 5 21 170 35 70 76 T1 C 0.93
FP660S 6 6 18 85 48 100 106 T1 A 1.05
FP665 6 6.5 17 151 34 94 100 T1/T2 C 1.08
FP670 6 7 15 1.15
FP672 6 7.2 15 1.17
FP685 6 8.5 13 1.35
FP690 6 9 12.5 1.4
FP680 6 8 13 98 56 117 119 T1 B 1.35
FP680A 6 8 13 98 56 110 114 T1 D 1.35
FP6100 6 10 12 151 50 94 100 T1/T2 C 1.6
FP6120 6 12 11 1.82
FP6140 6 14 12 108 71 140 140 #DIV/0! 2.25
FP6140W 6 14 12 108 71 140 140 H/S plug 2.25
FP6200 6 20 9 157 83 125 130 T3 C 3.6
FP832 8 3.2 32 68 49 91 91 Tab L 0.9
FP832A 8 3.2 33 134 36 63 69 T1 E 0.9
FP1208 12 0.8 260 96 25 62 62 plug O 0.34
FP1212 12 1.2 95 97 43 52 58 T1 E 0.55
FP1214 12 1.4 85 0.61
FP1212A 12 1.2 105 97 48 51 57 T1 F 0.56
FP1220M 12 1.6 125 150 20 90 90 Tab L 0.68
FP1220C 12 1.6 150 144 24 65 65 Tab 0.6
FP1220 12 2 65 178 35 61 67 T1 C 0.82
FP1223 12 2.3 60 0.92
FP1223C 12 2 130 182 24 62 62 Tab 0.71
FP1223CA 12 2 120 201 24 62 62 Tab 0.72
FP1220A 12 2 60 70 48 98 104 T1 C 0.75
FP1223A 12 2.3 52 0.8
FP1226A 12 2.6 48 0.85
FP1226 12 2.6 45 178 34 60 71 T1 F 0.92
FP1225 12 2.5 47 104 48 70 70 #DIV/0! M 0.92
FP1227 12 2.7 40 0.99
FP1228 12 2.8 45 67 67 97 103 T1 C 1
FP1228A 12 2.8 45 132 33 98 104 T1 C 1
FP1229 12 2.9 42 79 56 99 105 T1 D 1.1
FP1232 12 3.2 50 134 67 61 67 T1 E 1.25
FP1234 12 3.4 45 1.3
FP1242 12 4.2 45 195 47 70 76 T1 C 1.48
FP1245A 12 4.5 40 1.58
FP1240 12 4 45 90 70 101 107 T1 C 1.4
FP1245 12 4.5 40 1.47
FP1250 12 5 33 1.67
FP1260 12 6 32 1.82
FP1250A 12 5 34 140 48 102 103 #DIV/0! C 1.67
FP1260A 12 6 32 1.82
FP1265 12 6.5 24 151 52 94 99 T2/T1 F 1.92
FP1265S 12 6.5 24 151 51 95 100 #DIV/0! F 1.92
FP1265A 12 6 28 151 65 94 100 T1/T2 F 2.1
?FP1270 12 7 25 2.25
FP1272 12 7.2 25 2.3
FP1275 12 7.5 24 2.32
FP1285 12 8.5 20 2.45
FP1290 12 9 19 2.65
FP12100A 12 10 22 151 65 111 117 T2/T1 F 2.85
FP12100 12 10 22 151 98 95 101 T2 F 3.5
FP12120 12 12 19 3.6
FP12150A 12 15 19 160 76 159 162 T3 C 4.5
FP12150 12 15 18 181 77 167 167/167 T3/T8 D 5
FP12170 12 17 17 5.2
FP12180 12 18 17 5.4
FP12200 12 20 15 5.8
FP12220 12 22 14 181 77 166 166 T8 D 6.3
FP12240 12 24 12 166 175 125 125/125 T3/T8 D 8
FP12240A 12 24 12 165 125 175 182/175 T6/T8 D 8.1
FP12260 12 26 12 165 176 127 127 T3 D 8.1
FP12280 12 28 10 166 175 125 125/125 T3/T8 D 8.8
FP12280A 12 28 11 165 125 175 182/175 T6/T8 D 9
FP1870 18 7 42 151 102 100 100 plug P 3.8
FP1890 18 9 40 4
FP2445 24 4.5 60 206 77 74 74 plug P 3.2
FP2450 24 5 50 140 90 103 109 T1 D 3.2
FP24100 24 10 50 301 65 102 102 plug P 5.8
FP24140 24 14 45 300 98 103 103 plug P 8.2
FP24200 24 20 35 170 146 185 185
