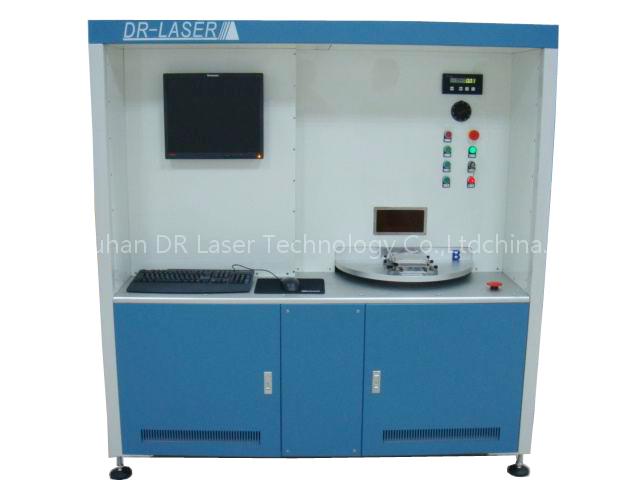

Laser insulator & edge-cleaner
Specifications
- Brand
- DR Laser
- Origin
- China
Laser insulator & edge-cleaner is a Other Laser Equipment product. Key specs — Brand: DR Laser; Origin: China.
Product Description
Laser edge-cleaner is equipped with semiconductor pumped laser, when the machine works, beam point is immovable, and worktable moves two-dimensionally with cell plate. This machine can do both edge-cleaning and insulation, instead of the traditional way that spraying sands to clean the edge film after laser insulation; the edge-cleaning speed in this machine is fast and unpolluted. Through surface-friendly and special control software, it can work with two-way or four-way laser beam.
Application
Film scribing insulation, edge-cleaning for a-si thin film solar cell, this machine equipped with semiconductor side pumped infrared 1064nm laser.1064nm
Main Technical Parameter
Wavelength 1064nm
Cleaning Speed 15cm2/s-35cm2/s
Insulated Line width 0.2-0.3mm
Worktable Size 1245mm*635mm 1400mm*1100mm
