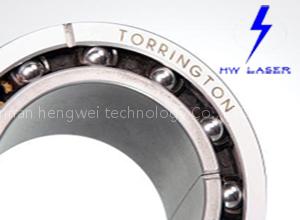

Laser Marking Machine for Bearing

Informations: Simeconductor marking machine si also callen diode pumped laser marking machine, is adopted with imported diode laser media ND:YAG of high quality, which generates high power laser pulse output of 1064nm wavelength to achieve high E-O efficiency. Applicable materials: Electronic component Auto meter key press Cell phone keypad Audio transmitted light key press Matrix laser coding silicon wafer marking Technical Parameters: Max.Outout

Power:75W Laser Wavelength: 1064nm Repetition Frequency: ≤50KHZ Standard Marking Scope: 100mmX100mm(optical) Marking depth: ≤0.50mm Marking speed: ≤7000mm/s Min.Line

Width: 0.015mm Min. Character: 0.3mm Repetition Precision: ±0.0025mm Machine power: 1.5KW Electric Power Demand: 220V/Single Phase/50Hz/8A Controlling

Size: 600mm*600mm*800mm
