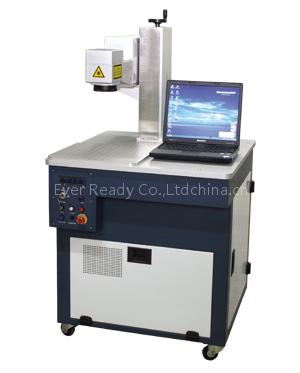

Laser Marker
Listing ID#10212113
ModelEP-12AS
CategoryBusiness Services

Laser Marker

Specifications

Origin
shenzhen
Request Quote
Quick answer

Laser Marker is a Business Services product. Key specs — Origin: shenzhen.

Product Description

Product features
12W laser outputting power.
Delicate marking, more suitable for non-metal material marking, such as mobile key-pad marking, plastic marking cooler.
·Applications & materials
The industries applied in: plastic key-press, communication equipment, IC, electric materials, building materials , package of food and medicine, PVC and so on.
·Technical Specification
Working distance: 182mm (±2mm) 299mm (±2mm)
Marking speed: 300 characters/s 400 characters/s
Min. character size: 0.1mm 0.2mm
Min. line width: 35um 50um
Output power: ≤12W
Power stability (8h): <±1%rms
Beam quality M2: <1.5 ( power 10W)
Pulse repetition frequency: ≤100kHz
Q frequency: ≥60kHZ
Supply voltage: 220V±22V / 50Hz / 5A
Overall consumption: <0.8kW
Dimension (W×L×H): 680mm×842mm×1209mm
Net Weight: 210kg
* Note: As products are constantly updated,please contact us for latest specifications
