Laser Embroidery Machine is a Other Farm Machines product. Key specs — Origin: China.
Product Description
Machine introduction:

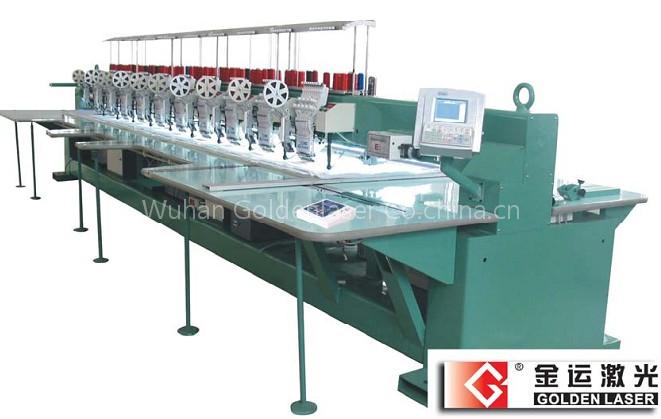

Golden laser embroidery and laser cutting integrative machine initially combines computer embroidery with laser cutting two independent technics together, delicate embroider, fine cutting, improving the process efficiency and quality greatly, enriching the forming and effect of technics greatly, saving the cost and materials. It can process with embroider, edge-cutting, stiletto, embroidered applique, hollowing and delaminated cutting&embroidery on various componential fabrics. At the same time of improving the added-value of embroider products, morever boosting up the aesthetic feeling of embroider products greatly. It opens an epoch for embroidery technics, and supplies a brand-new solution for the technics innovation in clothes making, toy, home-textile, cloth decoration etc. Business lines.
Single head/ Two heads/ Four heads/ Six heads/ Ten heads/ Twelve heads for Optional
Application Field
Suitable for cloth embroidery clothing, fabric, multi-layer veil embroidery, staffed toys, knitwear, leather, textile products, fabric, etc. referring to embroidery, trimming, punching, sticking cloth embroidery, ornamental engraving and cutting and layered embroidery.
Main technical parameters
Laser type | CO2 hermetic and detached laser tube |
Laser power | 25W*N(N means number of laser heads) |
Precision of power control | 0.1W |
Cutting precision for single laser head | ± 0.1mm |
Cutting speed | 0-15000mm/min |
Power supply | AC220V ± 5%/50Hz |
Format supply | AI, BMP, PLT, DXF, DST etc. |
Movement control | Offline EMS memory continuous movement |
Cooling model | Constant temperature water chiller system |
Control model | Separate computer embroidery and laser cutting system |
Auxiliary system | Autocontrol of exhaust and assistant blow system |
Transfer model of files USB | USB internet cable, U-disk copy |
Control software | Original Golden Laser embroidery and laser cutting system software |
---If you are interested in our products, please contact me(limu at goldenlaser.org) for quotation and offersheet.
