Laser Cutting Machinery for Metal

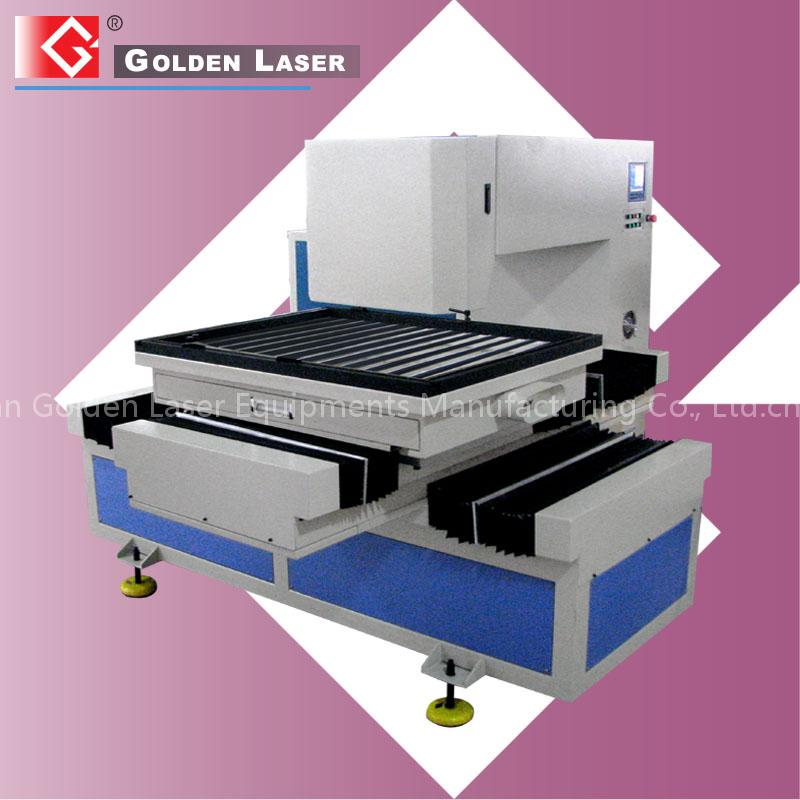

GJMSJG-8060 DT Lamp Pump High Precision Laser Cutting Machine

Advantages

Precise ball screw and servo motor.

High precision cutting.

Large format working area.

Multi-workpiece cutting. (Workpieces moving via cross slide working table.)

Data transfer via USB/network. (no required computer)

(We also have CO2 Laser to cut metal.)

Machine Features

This working area is suitable for processing large-size sheet metal.

High precise ball screw driving system and LCD display offline system, achieves perfect sheet metal laser cutting solutions.

If equipped rotary attachment, it can cut various shapes for metal pipes.

Application Field

Suitable for precision cutting all kinds ofmetal sheets, such as carbon steel, mild steel, stainless steel, alloy steel, brass, silver, gold, aluminum and alloys, copper and alloys, titanium and alloys, nickel-molybdenum alloys, etc.

Technical Parameter

Laser typeYAG Lamp Pump Solid State Laser

Laser power500W

Cutting area600mm×800mm

Working tableNet saw-teeth work table

No load max speed0-30000mm/min

Repeating location accuracy±0.15mm

Motion systemoffline CNC system, servo motor, precision ball screw drive

Cooling system18KW constant temperature water chiller

Power supplyThree phase 380V 50/60Hz

Format supportPLT, DXF, BMP, AI, DST, etc.

Standard collocationFollowing focus, 1.1KW bottom exhaust

Optional collocation650W lamp pump laser tube
