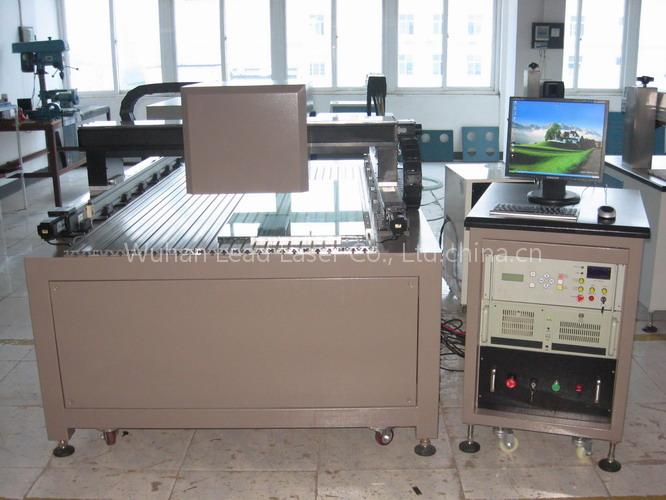

Large Scale Glass Engraving Machine

LD-EG-602C Rapid Scanner Laser Subsurface Engraving Machine is used to engrave 2D images or individual figures in crystal, glass and other transparent material products. It is suitable for decorating, upholstering and other relative industries.

1. LD-EG-602C Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technologytogether with 2KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively.

2. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production.

3. This machine has the software developed independently, which shall laser 2D image like 3D impression.

4. It has original technology, and the engraving range is1500X 1000mm.

Laser Wavelength532nm

Laser Frequency2 KHz

Maximum Engraving Speed80000~120000dots/min

Maximum Engraving Range1500mm×1000mm×1~80mm

Power of the whole machine 2KW

Electricity of the whole machine15A

Continuous working time 12 hrs

Number of Laser Heads 1

Control System Galvanometer Scanner Technology, DSP, 5 Dimension

Cooling SystemSemiconductor Cooling, free ofother cooling mediums

Weight of the whole machine450Kgs

Size of the whole machine1400mm×2100mm×1200mm
