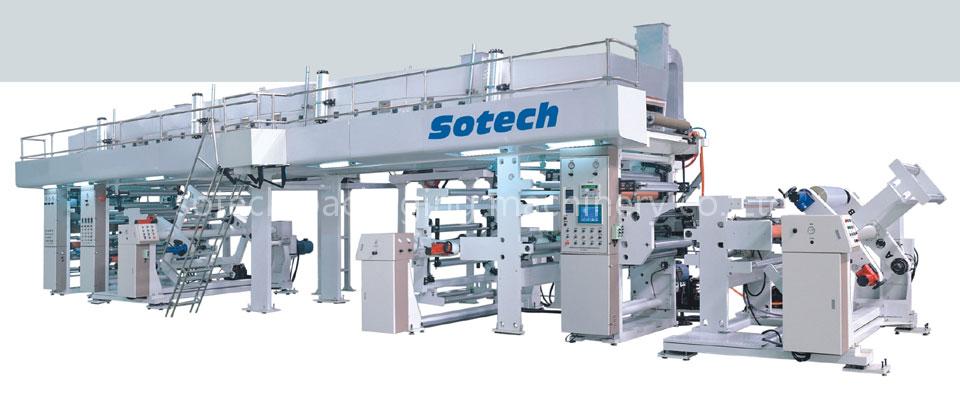

Laminator(SFH-C)

Main Features of the Laminator(SFH-C): *Main unwinder with edge controller; *Four section 12 meter long drying tunnel,with independent temperature control and adjustable recirculation ratio of hot air; *Infeed unit after main unwinder; *Idle rollers inside the drving tunnel driven by independent motor through tooth belts; *Stainless steel for inner part of drying tunnel; *Insulating layer inside the tunnel; *Back impression roller for laminating; *Gravure coating for abhesives with trolley; *Lateral movement doctor blade with pneumatic pressure regulator; *Spreading roller for smoothing the coatings with in dependent drive with inverter; *EPC at outlet of the drying tunnel; *Preheating of the substrates,and water cooling of the laminates; *Automatic tension control for the web section inside the drying tunnel; *Flying splice for unwinding and rewinding units *Drying source:electricity,steam,natural gas,etc.

Options: *Diagnostic information system *Machine management system Main Technical Data of the Laminator(SFH-C): *Max.mechanical speed:250mpm *width:1000-1650mm *Max.unwinding,diameter:¦Õ600mm *Max.rewinding diameter: ¦Õ800mm Apart from Laminator(SFH-C), our company also produces other kinds of laminators, if you are interested in those, please contact us.
