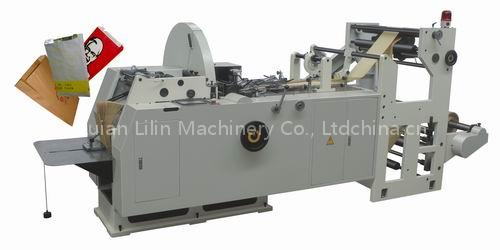

LMD-400 Automatic Paper Bag Making Machine

Introduction: This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags. Features: 1.

Suited for 30-80gsm paper. 2. Controls bag length through the human-machine touch screen interface. 3. PLC programmable servo motor control system 4. Equipped with an accurate photocell system for printed mark tracking. 5. Color mark error stopping system 6.

Automatic oil lubrication system Main Technical parameter: Cutting length(C):150-460mm Bag length(H):140-450mm Bag width(L):80-250mm Standard flap(P):12-17mm Paper thickess:30-80g/m2 Speed:100-300pcs/min Power:6kw Gusset depth(S):10-50mm Total weight:3500kg dimensions:4580(L)x1650(W)x1850(H)mm Note: Machine speeds dependent on paper & adhesive qualities, bag dimensions, operator knowledge, and general work philosophy.
