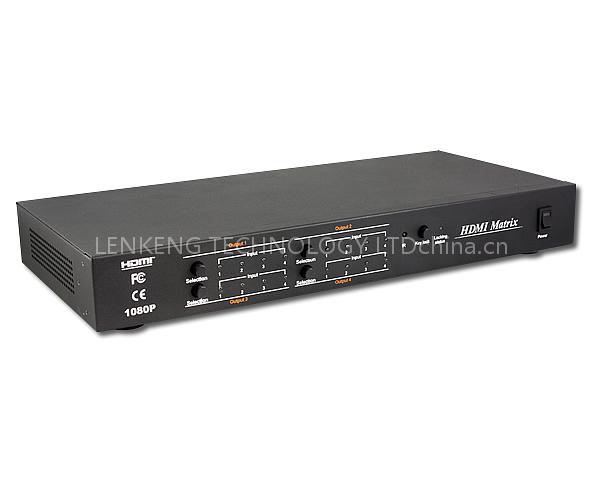

LKV344 4x4 HDMI Matrix Switch - HDMI 1.3

LKV344 4x4 HDMI Matrix Switch is a full routing type 4-by-4 HDMI Matrix Switch, and any one of input sources is able to be displayed simultaneously on 4 displays.

It offers HD video solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, luxurious house, etc

Features-It is real HDMI 1.3 version and HDCP compliant;
-Support full HDMI resolutions 1080p, 1080i, 720p, 720i and standard video format;
-Multiple Switching modes: IR remote control, operate manually or operate via RS232 port;
-With IR extender: enlarge remote control signal;
-Rack-mountable: with mounting kit and screws;
-Input video signal: 0.5-1.0 volts p-p;
-Input DDC signal: 5 volts p-p (TTL);
-Audio: LPCM,Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master Audio;
-HDMI video color format: deep color;
-Maximum transmission distance: 10 meters by 28AWG cable; 15 meters by 26AWG cable(for further distance, HDMI extender is optional);
-Power consumption: MAX. 36W;
-Power supply: 12V DC, 3A
Connection ImageInterface Specification

Front:

1.Output1 selection 2.Output1 LED
3.Output2 selection 4.Output2 LED
5.Output3 selection 6.Output3 LED
7.Output4 selection 8.Output4 LED
Receiving window. lock button
Indicator of locking status 12.Power Switch

Back:

1.Power input 2.4 HDMI Outputs
3.4 HDMI Inputs extension
5.RS232 port

Accessories & Package

Item	Qty	Pic
IR Extender	1 pcs
RS232 Control Software	1 pcs
Power supply	1 pcs
Remote Controller	1 pcs
User manual	1 pcs
Package Box	1 pcs

Package Info:

	Weight (KG)	Dimension (LxWxH cm)
Product	3	44X21X7
Gift Box (1pcs with accessories and gift box)	4	54x30x11.5
Carton Box (4pcs)	16	55X49.5X32.5
