LKV342 4x2 HDMI Matrix Switch

This 4x2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It is HDMI 1.3 V and supports full HD 1080p.

Features -4X2 HDMI Matrix Swtich LKV342 Distributes any one of 4 sources to either of 2 displays or to both 2 displays simultaneously; -Compatible with full HD 480i, 480p, 576i, 576p, 720p, 1080i and 1080p; -Switch easily between multiple HDMI sources via remote control or via buttons on the unit; -4X2 HDMI Matrix Swtich LKV342 is with inner IR receiver to enlarge IR remote control signal; -HDMI 1.3 V and compliant with HDCP; -Power: 5wtts (Max); -Power Supply: DC 5V Connection Image Interface Specification(1).

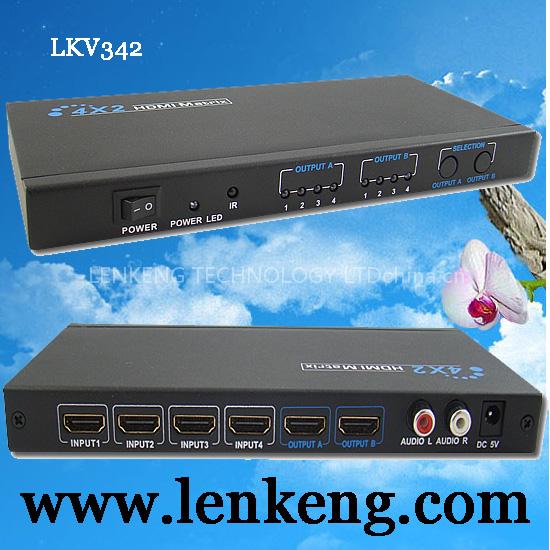

Power Switch (2). Power LED (3). IR Receiving Window (4). LED of Selecting Output A (5). LED of Selecting Output B (6).Switch Button of Output A (7). Switch Button of Output B (8) HDMI Input 1 (9). HDMI Input 2 (10).HDMI Input 3 (11). HDMI Input 4 (12). HDMI Output A (13). HDMI Output B (14). Audio Left for HDMI output A (15).

Audio Right for HDMI output A (16). Power Socket Accessories & Package Item Qty Remark

Power Supply 1pcs DC 5V

Remote Control 1pcs

User Manual 1pcs
