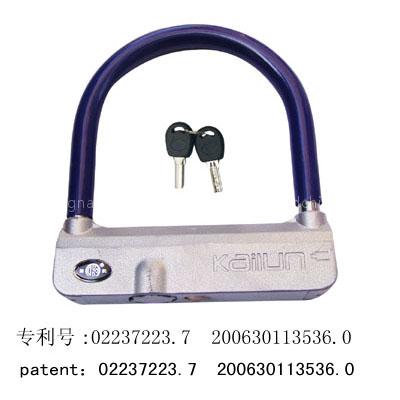

LK604 MOTORCYCLE PADLOCK

Item No.: LK604

Patent: 200630113536.0

Name : alarm padlock

Can be used on:

Motorcycle , electric bike ,Door, car steering wheel, bike, window, toolbox,truck, trailer, boat,shed, side gate, container,public storage unit,cart,garden machinery, locker, lockroom , etc

Lock Features:

105-110 db alarm sound

Auto-alarming system & locking system

Can be used alarmed or unalarmed states

Automatic alarm reset

Shake,shock,move or vibrate sensor

Resistant corrosion , Resistant bad weather, Resistant physical destory, Waterproof .

Material:Zinc alloy body

Hot processed hardened steel shackle(anti cut & saw), Shackle diameter : 16 mm

6 pcs button batteries (digital watch style), battery life:4-6months

Specification(cm): 19.5(height) X 17(width) X 3.5(depth)

2pcs brass security keys

6pcs AG13(4.5v) button batteries.(extra a set of batteries is available)

Package: blister with card

Carton size: 39*28*30cm (20pcs/ctn, G.W./N.W.: 27/26KGS)

FOB price :$6.0-6.5/pcs ,

MOQ :500PCS

Payment term : T/T (30% deposit and 70% before shippment)sample(western union)

20ft :20000pcs

LK604 Usage Direction

Patent: 02237223.7

1.The lock and the alarm are united into a whole , the lock pole adopts turning type operation

2.This kind of lock is widely used for vehicle . home . warehouse and etc.

3.Use the key to open the lock and pull out the lock pole,then turn over 180 degree(change side) to insert into the lock hole, When you hear the sound “ DU” , that means the lock is coming into alarm situation, after 15 seconds, when the lock is vibrated again, it will give an alarm and keep alarm with serial movement or vibration. Each alarm will last 10 seconds.

4.When you hear the sound “Ge. Ge. Ge….”constant voice or the alarm voice less than 10 seconds by sudden stop,that means the battery will be worn out,you need to replace the battery. First, please pull out the lock pole, spin out the two screws on the cover which side print with the battery symbol on the lock body, then insert the screwdriver into the lock hole to pry the cover torwards outside, take out the cover and the battery, you can replace the battery, please pay attention to the anode and cathode.

5.Warning:in order to replace battery easily later on ,please keep this cardboard.
