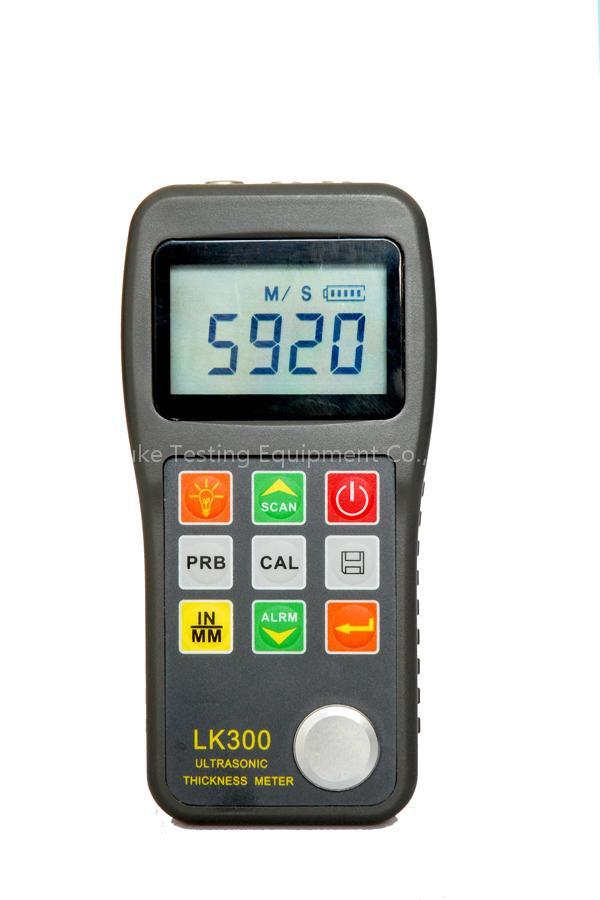

LK300 UT thickness gauge

Specifications Display Method: High-contrast LCD display code segment, high-brightness EL backlight; Measurement Range: (0.75 ~ 300) mm (steel), metric and imperial free conversion; Sound Velocity Range: (1000 ~ 9999) m / s: Resolution: 0.1mm/0.01mm optional Indication Accuracy: ± (0.5% H +0.05) mm; H for the actual thickness of the tested object Measuring cycle: single-point measurements per second four times, 10 times per second scan mode; Storage

Capacity: can store 20 groups (each up to 100 measurements) thickness measurement data Operating modes: a single point thickness measurement and scan thickness measuring two kinds of thickness mode Unit System: Metric or Imperial (optional) Operating voltage: 3V (2 Jie AA size alkaline batteries) Continuous working time: more than 100h (not open backlight pm) Communication Interface: RS232, with micro-printer or PC connection

Dimensions: 150mm × 73mm × 31 mm Total

Weight: 185g
