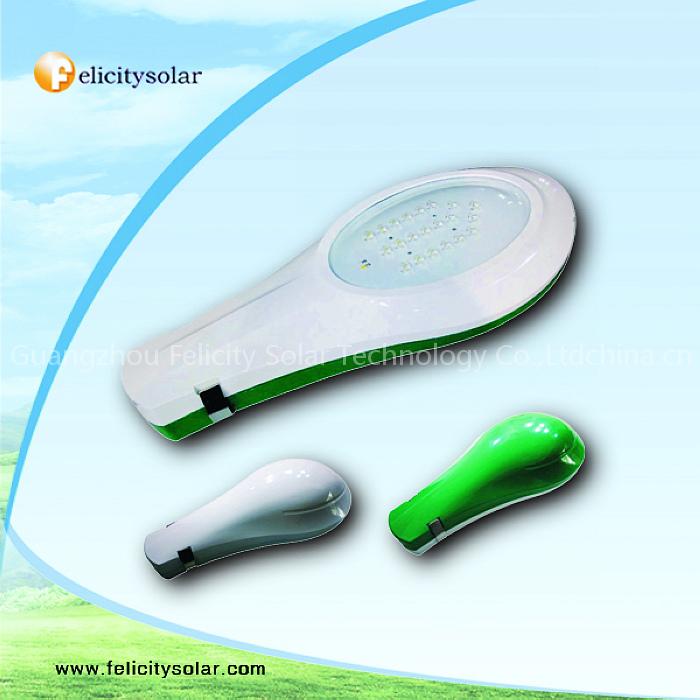

LED solar street light 12v/24v

Firstly, the main structure and applicability

The enclosure is made of casting aluminum materials and it is covered by powder coat. Also, it is characteristic of constant temperature solidified, high adhesion, waterproofness, dustproofness, fashionable structure, excellent quality and so on.

The lamp is mainly used for road lighting.

Secondly, the main structural parameters

• Rated voltage: AC(85V~265V) DC(12V 24V)
• Rated power: 36w
• Protection class of case:IP65
• LED number: 21LEDs

Thirdly, the installation and maintenance requirements

• 1, Pack up the various lighting components and accessories.
• 2, Cut off the power before installation.
• 3, Connect wires of the lamp body to the corresponding power line (red + green + blue -).
• 4, Make sure the product is installed steadily and then power on.

Fourthly, precaution in use

• 1, The installation of product must be fixed by professionals.
• 2, If there is something wrong with the shell or glass of the product such as disrepair, it can not be used as an off-specification product.

Technical specificat
