Listing ID#10017427
ModelHY-DS-125
CategoryCommercial & Industrial Lighting

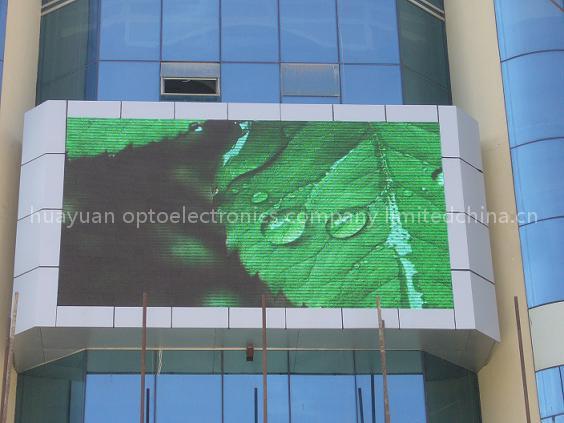

LED display p12.5
Specifications
- Brand
- Huayuan
- Origin
- China
Quick answer
LED display p12.5 is a Commercial & Industrial Lighting product. Key specs — Brand: Huayuan; Origin: China.
Product Description
| Item | Specifications | ||||
| LEDLamps | Type | Ф3mm high brightness LED lamps | |||
| Arrangement | 1R,1G,1B | ||||
| Red Wavelength | 625nm(+2.5nm) | ||||
| Green Wavelength | 525nm(+2.5nm) | ||||
| Blue Wavelength | 470nm(+2.5nm) | ||||
| LED Module | Dot Pitch | 12.5mm | |||
| Module Resolution | 32*16 pixels | ||||
| Module Size | 400*200 mm | ||||
| LEDCabinet | Physical Pixel | 6400 pixels/sq.m | |||
| Cabinet Resolution | 64*80 pixel | ||||
| Cabinet Dimension | 800*1000 mm | ||||
| Brightness | 7000 Nit | ||||
| Viewing Angle | 110(Horizontal),90(Vertical) | ||||
| Minimum Viewing Distance | 12meters | ||||
| Power Consumption (Max) | 1000 w/sq.m | ||||
| Power Consumption (Typical) | 500 w/sq.m | ||||
| Weight | 50 Kgs/sq.m | ||||
| Frame Frequency | no less than 60 frame/sec | ||||
| Refresh Rate | no less than 480 HZ/sec | ||||
| Voltage | 220/110 VAC, 50/60 Hz | ||||
| MTBF | 5000 hours | ||||
| Life Pan | 100,000 hours | ||||
| Protection Level | IP 65 | ||||
| Malfunction Dot Rate | less than 0.0001 | ||||
| WorkingTemperature | -25℃~65℃ | ||||
| Humidity | 10%~99% | ||||
| Control System | Drive Mode | Static constant current | |||
| Control Means | Synchronization | ||||
| Control System | PCTV Board + DVI Board + Control Board + Network cable Transmission | ||||
| Software | LED Studio (LINSN) | ||||
| Input Signal | RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION | ||||
| PC System | Win2000,Win XP, etc | ||||
