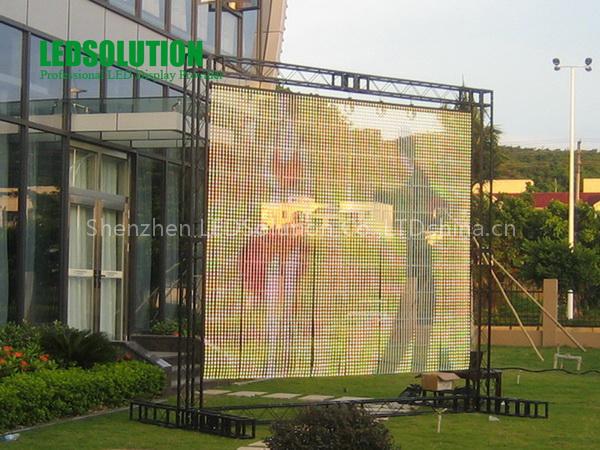

LEDSolution 40mm Flexible SMD LED Panel

Parameter Unit Value Pitch mm 40Brightness nits 1,500Color temperature deg. K 6,500 Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70) Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)Panel weight kg 6Panel width mm 480Panel height mm 3,200Panel depth mm 10Panel area sq. m.

1.536Panel material PVCIngress protection IP IP65Operating temperature range deg.

C -30 to +60 Humidity operating RH 10% ~ 90%Pixel type and configuration R/G/B 3in1 SMDResolution per panel 12x80Dot per panel 960Dot per sq. meter 625LED per sq. meter 625Recommended minimum viewing distance m 30Recommended best viewing distance m 40~120Colors 16 millionsGrey scale (linear) Levels 256 levels per color Brightness control Levels 100 Contrast ratio 1,000:1 Processing depth bit 14 Video frame rate Hertz 60 Display refresh rate Hertz 600Input voltage (nominal) VAC 110 to 240 Input power frequency Hertz 50 to 60 Input power (max) Watts/Panel 192Input power (typical) Watts/Panel 76.8Lifetime (50% brightness) Hours ≥100,000 Red wavelength (dominant) nm 620~625Green wavelength (dominant) nm 525~530Blue wavelength (dominant) nm 470~475Panel input format DVIData interconnection UTP Cat 5/Optical FiberMounting system Hanging
