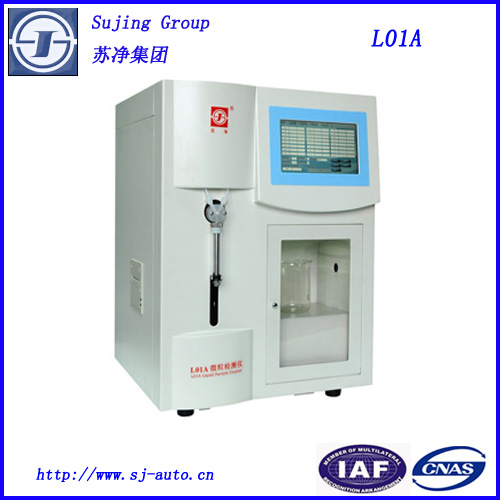

L01A-8/L01A-24 Liquid Particle Counter

L01A-24 Liquid Particle Counter L01A-24 Liquid Particle Counter uses photoresist method; import semiconductor laser light source, long life, high stability; 24 detection channels, channel size arbitrarily set to detect powerful; imported precision syringe pump sampling control system, high precision of sampling, sampling volume set arbitrarily; 7 inch true color large-screen LCD touch display, built-in calibration curves and powerful database management module, easy to operate; USB interface, data storage is not restricted, you can easily transfer data Save them to your computer.

L01-24 technical specifications : optical system Laser photoresist law, semiconductor laser light source Detection range 1 ~ 500μm detection channels 24 channels, the particle size in the range of 1 ~ 100μm arbitrarily set by the user, the interval 0.1μm sample volume 0.2 ~ 1000ml Sampling rate 5 ~ 100ml / min Test Range 0 ~ 9999999 particles Accuracy ± 5% specified value repeatability RSD 1,000 / ml, 5ml sample) sample volume accuracy 90% Best detectable concentration 0 ~ 18,000 particles / ml Display Operation 7-inch large-screen color LCD touch screen Data Output built-in printer, RS232 interface, USB interface database software Provides data statistics,query, analysis, and storage capabilities Power AC 220V ± 10%, 50Hz,
