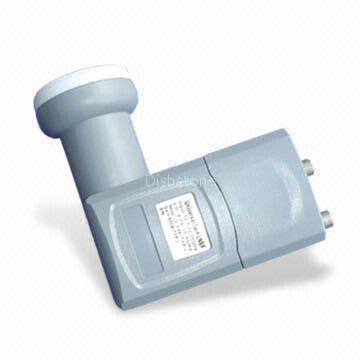

Ku band universal twin LNBF

Features: Suitable for digital MMDS operation Ultra-low noise figure High-quality picture and digital ready PLL for low phase noise High-gain Weatherproof housing Specifications: Input frequency range: 10.7 to 12.75GHz Output frequency range: 950 to 2,050 and 950 to 2,150MHz Receiving all single and dual polarized Ku-band satellite signals Qualified for working in harsh environments Superior low-noise performance F/D ratio: 0.28-0.42 (adjustable) Image rejection: 45dB (minimum) Input connector: integrated dipole Gain: 36 ±2dB (typical) Gain flatness: 0.5dB/6MHz; ±2.5dB/in band Noise figure: 0.5dB (typical) IF rejection at RF port: 60dB (minimum) Image rejection: 40dB (typical) LO frequency: 9.75/10.6GHz, 9.75/10.75GHz LO frequency stability: ±2.5MHz at -40 to +60°C LO phase noise: -70dB/Hz at 10k Hz -90dB/Hz at 100k Hz -110dB/Hz at 1MHz Output power (at 1dB gain compression): 10dB (minimum) Output VSWR: 2.5:1 (maximum) Output connector: 75Ω F type female Operating voltage: 15 to 20V DC DC current consumption: 150mA (maximum) Operating temperature: -40 to +60°C
