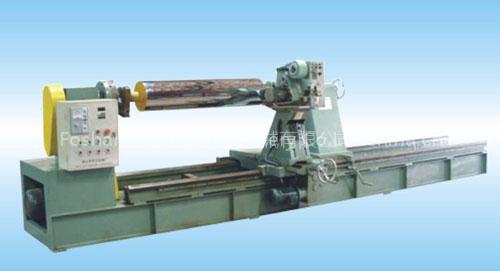

KY4-III Sand-belt Mirror Grinding Machine
Specifications
- Brand
- Keying
- Origin
- China (Mainland)
KY4-III Sand-belt Mirror Grinding Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Keying; Origin: China (Mainland).
Product Description
Name: Sand-belt Mirror Grinding Machine KY4-III Usage: 1. Fit to polish the workpieces with high stiff surface(e.g. Chrome-plated roller, ceramic roller, chrome-plated sheet and stainlless steel plate). 2. Ground accuracy: up to or over finish level of Grade 12(pure mirror surface) 3. Installed on cylindrical polisher, lathe or grinder. 4.
Technical performance and index of the grinding machine Width of sand belt: 4 inches; Vibrating frequency: 25HZ; Amplitude of polishing wheel:5mm; Compressing force of polishing wheel:20-130kgf; Retracting speed of sand-belt: 1-100mm/min; Power of motor: 500w/220v/1ph Boundary dimension: 540*310*460mm
