Name: KST SERIES QUICK COUPLING
Brand: LENFLEX

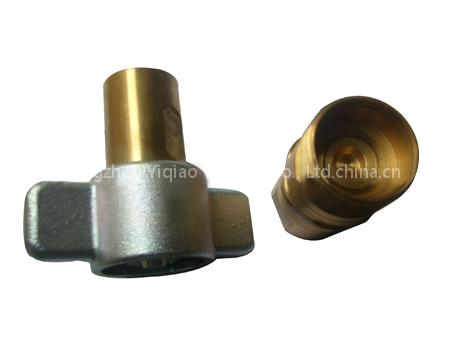

DESCRIPTIONS OF THE KST SERIES QUICK COUPLINGApplication

The KSP Series is ideal for connecting hydraulic lines on oil field equipment like power tongs,swivels and mobile drilling is also widely used on dump trailers to connect the tractor to wet-line hydraulic systems.
The KST Series is suitable for many applications where high flow connect under pressure couplings are required.Other uses include:submersible pumps,engine test stands,and bulk liquid CO2 transfer.

Features

The KST heavy-duty wing nut is ruggedly built-specifically to withstand the hammer blows commonly used to tighten and loosen this coupler.
The flange is designed to give a positive no-slip bulkhead mounting to reduce downtime.
The flush face valve keeps air inclusion and spillage to a minimum.
Corrosion resistant brass body makes this coupling compatible with a broad range of media and provides versatility.

TECHNICAL DATA OF THE KST SERIES QUICK COUPLING:

KST Series :

WING COUPLERS

BODY SIZE	THREAD SIZE	OVERALL LENGTH	WRENCH FLATS	WING NUT	W.T.(LB.)
(IN.)	NPT	A	B	C	P/PIECE
3/4	1/2-14	3.22	1.16	4.06	1.30
3/4	3/4-14	3.22	1.16	4.06	1.25
1	1-11.5	3.87	1.43	4.38	1.89
1-1/4	1 1/4-11.5	4.16	1.78	5.20	2.80
1-1/2	1 1/2-11.5	4.34	2.00	5.32	3.70

NIPPLES

BODY SIZE	THREAD SIZE	OVERALL LENGTH	WRENCH FLATS	WING NUT	W.T.(LB.)
(IN.)	NPT	D	G	F	P/PIECE
3/4	1/2-14	3.11	1.62	1.18	0.80
3/4	3/4-14	3.11	1.62	1.18	0.75
1	1-11.5	3.55	1.88	1.56	1.30
1-1/4	1 1/4-11.5	3.71	2.13	1.88	1.65
1-1/2	1 1/2-11.5	4.12	2.50	2.18	2.60

PART NUMBER	DESCRIPTION	FLOW RATE GPM CONNECTD	MAX WORKING PRESSURE CONNECTED	MAX BURST PRESSURE CONNECTED
KST-12-08-F	3/4 wing style coupling X 1/2 NPT Female	35GPM	3000PSI	9000PSI
KST-12-08-M	3/4 nipple with 1/2 NPT male
KST-12-12-F	3/4 wing style coupling X 3/4 NPT Female	35GPM	3000PSI	9000PSI
KST-12-12M	3/4 nipple with 3/4 NPT male
KST-16-16F	1 wing style coupling X 1 NPT Female	55GPM	3000PSI	9000PSI
KST-16-16M	1 nipple with 1 NPT male
KST-20-20F	1-1/4 wing style coupling X 1-1/4 NPT Female	80GPM	2750PSI	8250PSI
KST-20-20M	1-1/4 nipple with 1-1/4 NPT male
KST-24-24F	1-1/2 wing style coupling X 1-1/2 NPT Female	110GPM	2500PSI	7500PSI
KST-24-24M	1-1/2 nipple with 1-1/2 NPT male
