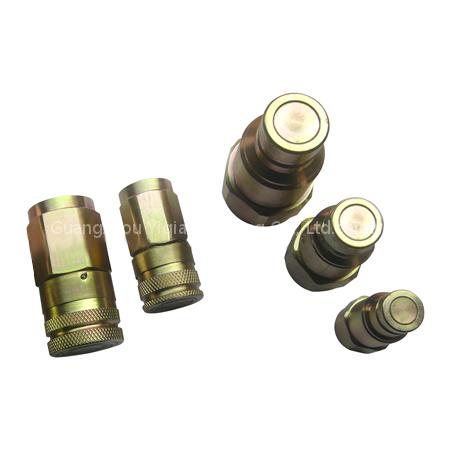

KSP SERIES QUICK COUPLINGS is a Hydraulic Tools product. Key specs — Brand: LENFLEX; Origin: CHINA.
Product Description
---------------------------------------------------------------
Features of the KSP SERIES QUICK COUPLINGS
1. KSP Series couplings provide non-spill connection/disconnection for general purpose applications.
2. Dimensionally interchangable with ISO16028 standard flush face couplings.
3. Wide selection of body sizes,ranging from 1/ 4" to 2" to provide versatility in a variety of applications.
4. Sealed spring cavity prevents dust collection and possible sleeve binding.
5. Heat treated valve sleeve and poppet resist scratches and wear.
6. Crimped valve seal prevents seal washout.
7. Hardened locking collar sleeve resists brinelling,avoids cracking and provides longer life.
8. Large number of locking balls resists brinelling.
9. Concealed lock ring prevents accidental removal.
plate with yellow chromate finish resists corrosion.
11.Positive lock retaining ring will not wash out under high flow conditions.
12.Induction hardened locking surface reduces wear and brinelling.
13.Anti-blowout Nitrile/PTFE bonded nipple seal prevents damage and blow-out when connecting with residual pressure.
---------------------------------------------------------
Specifications of the KSP SERIES QUICK COUPLINGS
1. Body: Steel
2. Finish: Zinc plated with yellow chromate finish
3. Valve:Flush face valving
4. Seal:Anti blow-out Nitrile/PTFE bonded seal
----------------------------------------------------
Applications of the KSP SERIES QUICK COUPLINGS:
KSP Series couplings were designed for the construction equipment market and are used extensively on skid steer non-spill feature eliminates hydraulic spillage and air inclusion when connecting or disconnecting hydraulic KSP Series is also ideal for many other applications where hydraulic spillage is a concern and global interchangeability with other manufacturer is important.ISO16028 interchange.
TECHNICAL DATA OF THE KSP SERIES QUICK COUPLING:
| KSP Series : | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
APART FROM THIS KSP SERIES QUICK COUPLING, OUR COMPANY CAN PROVIDE OTHER KINDS OF QUICK COUPLINGS, HOSE FITTINGS AND ADAPTORS, IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE FEEL FREE TO CONTACT US.
