Listing ID#10135730
ModelKL-AB160C
CategoryMachining Centre & Parts
Quick answer
KL-AB160C spindle is a Machining Centre & Parts product. Key specs — Brand: KLKJ; Origin: China.
Product Description

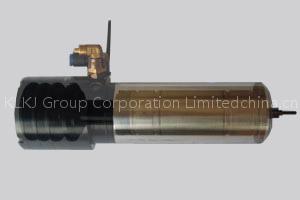

Air bearing spindle for PCB drilling machine, high speed, greater can replace ABL H916C spindle.
Specification:
speed : 160,000rpm;
supply prssure:80psig(5.6kg/cm2);
3.Axial direction load: 17.9kg;
4. Air flow: 76 l/min;
5.Cooling water flow: 1.55 l/min;
6.Static precision:less or equal to 1um;
7.Dynamic runout: less or equal to 8um at 160,000rpm;
8.Output power: 402w at 60,000rpm;
9.Radial load: 15 1b (6.75kg) at 20,000rpm;
10. Body size:2.437inch (61.9mm)
