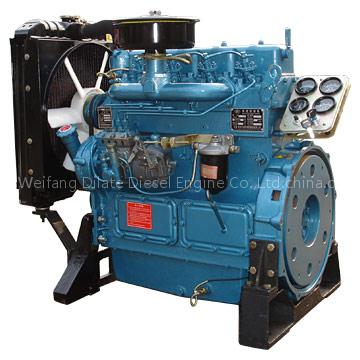

K4100SERIES DIESEL ENGINE FOR POWER GENERATOR

1. The model of the engine: K4100D

2. The prime output: 30.1kw

3. The rated speed: 1500r/min

4. The cylinder: bore&stroke: 4-100X115mm

5. The type: water-cooled,inline,4 stokes,direct injection ,wet cylinder liner

6. Cubic Capacity (Liters ) 3.61

7. Piston Speed (m/s) 5.75

8. Compression Ratio 19:1

9. Machine Governor ≤5%

10. Electronic Governor ≤1%

11. Acostic Pressure(dBA) 105

12. Exhaust Temperature ≤540

13. Lube Capacity 9

14. Cooling System Volume 13

15. Area of Heat Dissipation 16

16. Combustion Air Flow 2.8m3/min

17. Exhaust Gas Flow 7.736m3/min

18. Rating Fuel Consumption (L/h) 9.68
