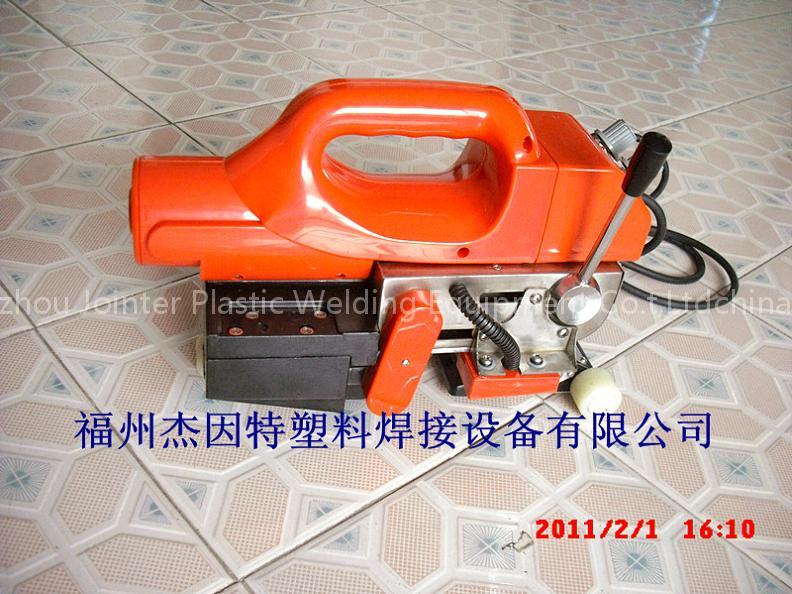

Jointer Series Waterproof (Geomembrane) Welder JIT800
Specifications
- Origin
- Fujian, China(Mainland)
Quick answer
Jointer Series Waterproof (Geomembrane) Welder JIT800 is a Business Services product. Key specs — Origin: Fujian, China(Mainland).
Product Description
Jointer series geomembrane(waterproof) welding machine is our developed product, which can weld the geomembrane of different thickness and applicable for welding of all thermal-fused material such as PE,PVC,HDPE,EVA,PP and the like.
The control of this series of welding machine adopts PID automatic themostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit,driven by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.(alumnium inside, carton outside)
This serise of welding machine is excellent in performance and easy for operating, with high welding speed and good work is extensively uesd in engineeing projects such as express highways, tunnels, reservoirs, waterproof of construction and so on.
nbsp
Technical parameters
Voltage(V):220V
Frequency(Hz):50Hz
Power(P): 750W
Welding sped(V):0.5-5m/min
Thickness of material to be welded :0.2-1.5mm
Overlap width:100mm
Welding width:12.5×2,interior cavity 12mm
Seam strength:≥85% base material (tensile resistant in shear direction),complete machine
Weight:5kg
Insulation class:classII
The control of this series of welding machine adopts PID automatic themostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit,driven by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.(alumnium inside, carton outside)
This serise of welding machine is excellent in performance and easy for operating, with high welding speed and good work is extensively uesd in engineeing projects such as express highways, tunnels, reservoirs, waterproof of construction and so on.
nbsp
Technical parameters
Voltage(V):220V
Frequency(Hz):50Hz
Power(P): 750W
Welding sped(V):0.5-5m/min
Thickness of material to be welded :0.2-1.5mm
Overlap width:100mm
Welding width:12.5×2,interior cavity 12mm
Seam strength:≥85% base material (tensile resistant in shear direction),complete machine
Weight:5kg
Insulation class:classII
Welcome to contact us,if you have any questions.
