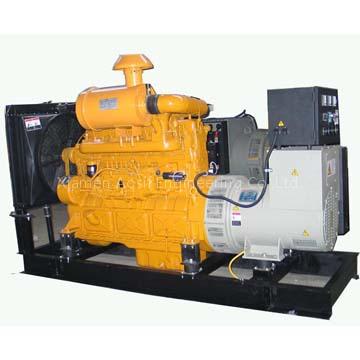

Jinan Engine Powered Generator Set

Detailed Product Description

Features:

1)The outstanding diesel engine from Jinan diesel engine.

2)Famous brand AC alternator: Stamford, Marathon, Leroy Somer for your option.

3)Low operation and maintenance cost.

4)Each AOSIF unit is produced based on most advanced technology and strictly quality control.

5)Optional ATS(Automatic Transfer Switch), Canbus and RS232/RS485, mobile trailers, PC remote control.

Alternator performance:

1) Original AVR(automatic voltage regulator) ensure the output voltage steady.

2)2/3 winding pitch enables the generator to reach the optimal operating performance.

3) Optional PMG(Permanent Magnet Generator) can separately provide the power supply for the excitation system.

4) Protection class from IP21-23 for option.

5) Insulation class: H

Technical Data:

1) Rated Power: 50Hz(60Hz optional)

2) Rated speed:1,500 rpm(1,800 rpm optional)

3) Phases: 3 phases and 4 wires

4) Power factor:0.8(lag)

5) Voltage fluctuation:<0.5%

6) Frequency fluctuation: <0.5%

7) Prime power range: 500KW-1600KW
