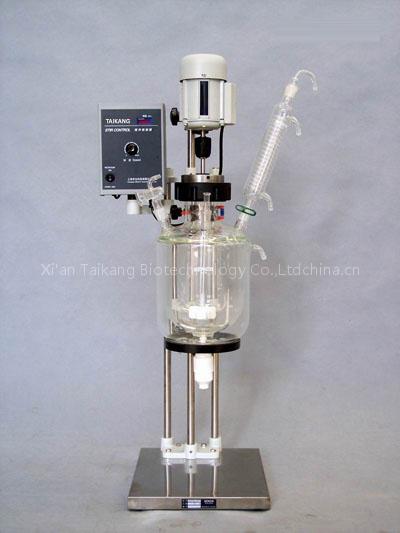

Jacketed Glass Reactor
Specifications
- Brand
- TK
- Origin
- Xi'an,China
- Price Term
- FOB
Jacketed Glass Reactor is a Industrial Power Supplies product. Key specs — Brand: TK; Origin: Xi'an,China; Price Term: FOB.
Product Description
This kind of reactor is double layer design,the inner can put in reaction solvent to do stirring reaction,with the jacketed layer can put in different sources to do loop heating or cooling reaction.
Application:
Stirring reaction under positive pressure or negative pressure
Backflow and distillation
New material synthesis
Technical Parameters:
Model | TFD-50L |
Volume(L) | 50L |
Glassware Material | Borosilicate (Pyrex: G3.3) |
Frame Material | SUS304 |
Diameter of Vessel Lid (mm) | 180 mm |
Mouth Amount of Vessel Lid | 5 |
Stirring Power (w) | 370 w |
Speed Adjustment | Electronic Stepless |
Rotary Speed (rpm) | 50 ~ 1200 |
Reaction Temperature Range (°C) | -50 ~200°C |
Thermometer Type | Thermometer |
Seal Type | Ceramic Mechanical |
Reachable Vacuum Level (Mpa) | ≥ 0.098MPa |
Stirring Head Type | Arc |
Material Of Stirring Bar | Stainless Steel & PTFE Sleeve |
Condenser Type & Area (sqm) | Vertical (0.30) |
Continuous Charge Funnel | Yes |
PTFE Graduated Charge Valve | Yes |
Discharge Valve | PTFE Propel (Teflon) |
Discharger Position | Bottom |
Dimensions (cm) | 40*50*110 |
Power | 220Vno5A |
Extra Component (Optional) | Epoxy Painting |
Extra Component II (Optional) | Explosion (Flame) Proof |
