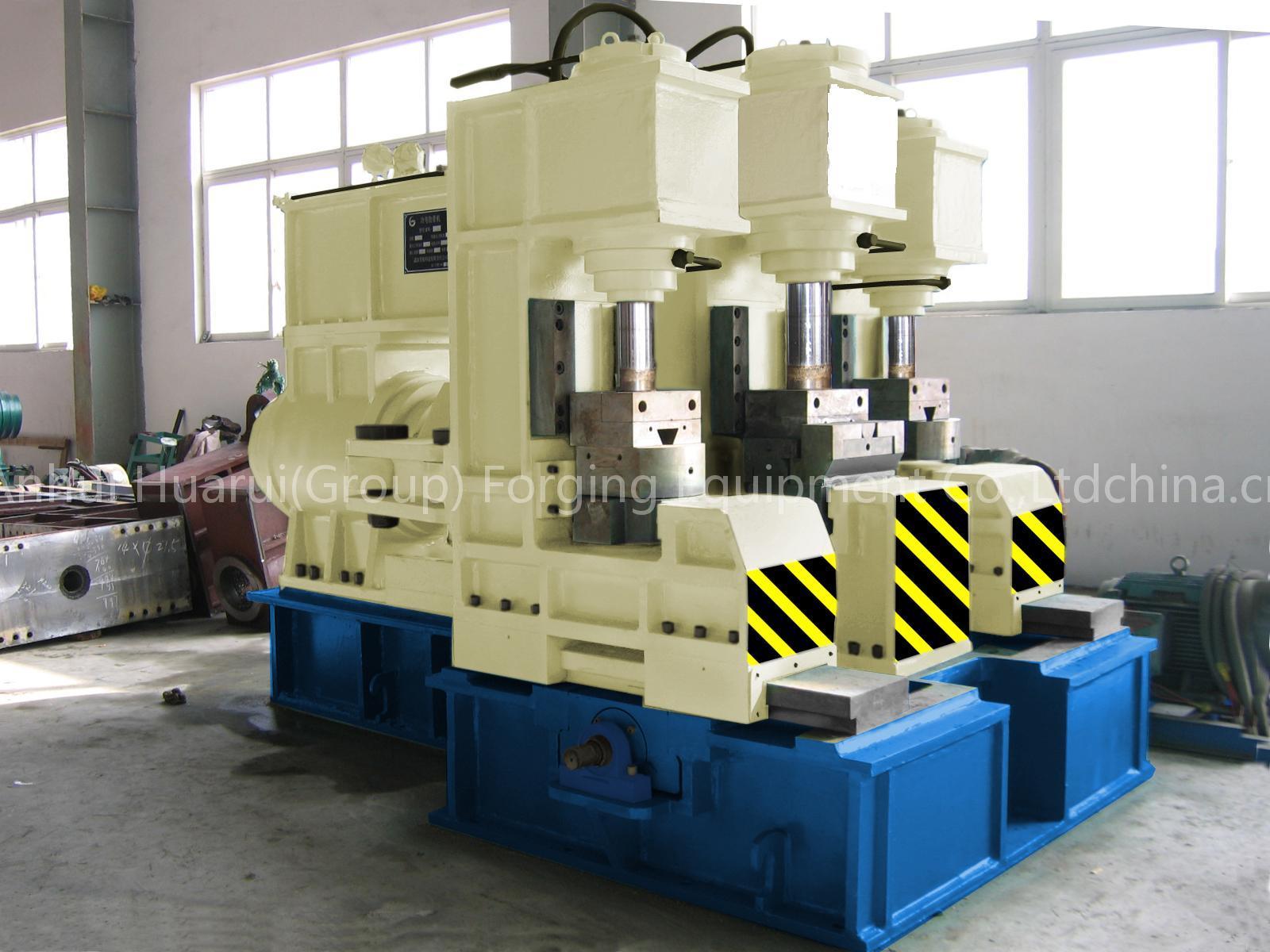

JXS series PLC frame bending machine
Specifications
- Brand
- gutai
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
JXS series PLC frame bending machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: gutai; Origin: China (Mainland); Price Term: FOB.
Product Description
| Technical specifications of PLC frame cold bending machine | ||||||||||
| No. | Description | Unit | Technical specifications | |||||||
JXS-100 | JXS-160 | JXS-250 | JXS-400 | JXS-600 | ||||||
| 1 | Machining and bending function of profile steel | 1 | excurvate bending, incurvate bending, S bending, straightening, leveling | |||||||
| 2 | Horizontal bending oil cylinder | Max. pushing/pulling force | KN | 1000 | 1600 | 2500 | 4000 | 6000 | ||
| Stroke | mm | ±175 | ±180 | ±270 | ±280 | ±350 | ||||
| Max. working speed | mm/s | 11 | 15 | |||||||
| System pressure of oil circuit | Mpa | 22 | 25 | |||||||
| 3 | Clamping Oil cylinder (adjustable clamping pressure) | Max. pressure of the middle clamper | KN | 350 | 500 | 700 | 1000 | 1200 | ||
| Max. pressure of the side clamper | KN | 200 | 250 | 350 | 600 | 700 | ||||
| System pressure of oil circuit | Mpa | 22 | 25 | |||||||
| 4 | Any adjusting distance of the bending support point | mm | 650-1050 | 300-1200 | 1000-1400 | 1200-1700 | 600-2200 | |||
| 5 | Max. stroke of the vertical pre-bending device for eliminating side bending | mm | ±20 | ±20 | ±20 | ±25 | ±25 | |||
| 6 | Feeding mechanism | Max. speed | mm/s | 100 | 100 | 100 | 120 | 150 | ||
| Max. distance for single feeding | mm | 400 | 400 | 400 | 500 | 600 | ||||
| Max. pushing force of feeding oil cylinder | KN | 126 | 126 | 246 | 246 | 407 | ||||
| System pressure of oil circuit | Mpa | 16 | ||||||||
| 7 | Yield strength of material | N/mm2 | 345(Note: shipbuilding material AH36/DH36/EH36) | |||||||
| 8 | Machining range of profile steel | Min. support point | Bulb flat steel | Range | mm | 70-200 | 90-270 | 120-340 | 160-430 | 220-650 |
| Min. bending radius in section | mm | 10*h (h web plate height) 900 Min. | ||||||||
| Max. scalene angle steel | mm | 180 | 250 | 350 | 450 | 650 | ||||
| Max. T profile steel | mm | (200 option) | 1 | 350 | 450 | 700 | ||||
| Max. flat steel | mm | 1 | 1 | 300*40 | 400*40 | 600*40 | ||||
| Max. round steel | mm | 1 | 1 | 80 | 80 | 100 | ||||
| Max. support point | Max. T profile steel | mm | 1 | 1 | 1 | 1 | 800 | |||
| Max. flat steel | mm | 1 | 1 | 1 | 1 | 700*40 | ||||
| Note: technical specifications can be adjusted according to the requirements of the customers. | ||||||||||
