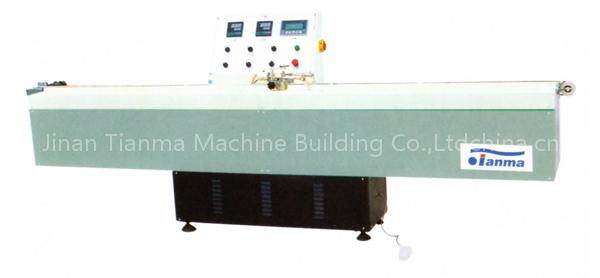

JT02 Butyl Extruder Machine
Specifications
- Brand
- tianma
- Origin
- jinan
- Price Term
- FOB
JT02 Butyl Extruder Machine is a Other Farm Machines product. Key specs — Brand: tianma; Origin: jinan; Price Term: FOB.
Product Description
Features and specialties The machine is controlled by PLC completing extruding operation automatic and accuratelyThe efficiency is high. The machine is suitable for aluminum frame of square oblong round and all the other kinds of shape. High temperature resisting and airproof design resolve regular problems existed among extruding machines.
This machine is included the liquid presses system work and the spirit liquid system increase to press work --------------------------------------------------------------------------------Main Technique Parameter Voltage 380V 50HZ Total power 3.2kw (2.09kw) Adjustable range 6~20mm Transmit speed 24m/min Squeeze pressure 8~12Mpa Spirit source pressure 0.5~0.8Mpa Extruding temperature 100-160℃ Dimension 3500×700×1300mm
