JIS Hot Rolled Angle Steel
Specifications
- Brand
- jinding
- Origin
- China
- Price Term
- FOB
JIS Hot Rolled Angle Steel is a Construction & Real Estate product. Key specs — Brand: jinding; Origin: China; Price Term: FOB.
Product Description
Material: SS400, ST37-2, A36, S235JRG1, Q235, Q345 etc.
Length: 6meter, 9meter, 12meter
Size: 20*20*3mm -200*200*24mm
nbsp
| specification | size(mm) | weight (kg/m) | |
| width | thickness | ||
| 2 | 20 | 3 4 | 0.889 1.145 |
| 2.5 | 25 | 3 4 | 1.124 1.459 |
| 3 | 30 30 | 3 4 | 1.373 1.786 |
| 3.6 | 36 | 3 5 | 1.656 2.163 2.654 |
| 4 | 40 | 3 5 | 1.852 2.422 2.976 |
| 4.5 | 45 | 3 6 | 2.088 2.736 3.369 3.985 |
| 5 | 50 | 3 6 | 2.332 3.059 3.770 4.465 |
| 5.6 | 56 | 3 8 | 2.624 3.446 4.251 6.568 |
| 6.3 | 63 | 4 10 | 3.907 4.822 5.721 7.469 9.151 |
| 7 | 70 | 4 8 | 4.372 5.397 6.406 7.398 8.373 |
| 7.5 | 75 | 5 10 | 5.818 6.905 7.976 9.030 11.089 |
| 8 | 80 | 5 10 | 6.211 7.376 8.525 9.658 11.874 |
| 9 | 90 | 6 12 | 8.350 9.656 10.946 13.476 15.940 |
| 10 | 100 | 6 16 | 9.366 10.830 12.276 15.120 17.898 20.611 23.257 |
| 11 | 110 | 7 14 | 11.928 13.532 16.690 19.782 22.809 |
| 12.5 | 125 | 10 14 | 19.133 22.696 26.193 |
| 14 | 140 | 10 16 | 21.488 25.522 29.490 33.393 |
| 16 | 160 | 10 16 | 24.729 29.391 33.987 38.518 |
| 18 | 180 | 12 18 | 33.159 38.383 43.542 48.634 |
| 20 | 200 | 14 24 | 42.894 48.680 54.401 60.056 71.168 |

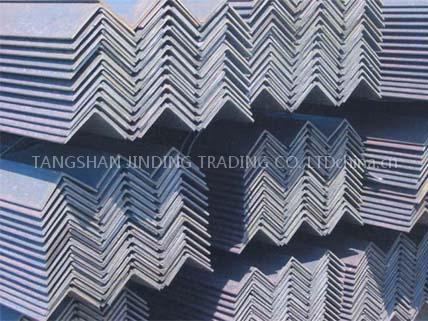

Angle steel is a kind of steel which have two sides uprightness right angles section. It could be divided into equal and unequal shape. The kind which have two same uprightness border is equal angle. The kind one border longer than another is unequal angle. It is described by border width*width*thickness.
Usage: Be used in construction structure, alos used in construction joist, tower, derrick etc.
