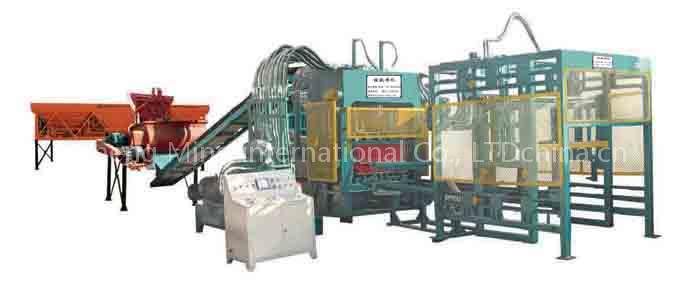

JF-ZY150A Baking-free brick machine
Specifications
- Brand
- jian feng mechanical
- Origin
- China (Mainland)
Quick answer
JF-ZY150A Baking-free brick machine is a Business Services product. Key specs — Brand: jian feng mechanical; Origin: China (Mainland).
Product Description
Frame Machine Specification: (1). Loading Block Pallet Size: 690*550*20mm (2). Molding Cycle: Blocks 13~17 senconds; Paver 16~20 seconds (3). Main Processing Mode: Mold With Worktable Together Vibration &Hydraulic Pressure Form (4). Vibration Frequency: 4000 times/min (5). Main-Frame Rated Power : 19.85 KW (6). Rated Pressure: 16MPa (7).
Machine Dimension: (L*W*H) 5100 * 4700 * 2550 mm (8). Total Weight: 5 Tons (9). Outline Dimension:5100*4700*2550mm (10) Product Pressure Intensity: Max.10 Mpa/Block; Max.35 Mpa/Road Paver If you want to know more information of brick machine you can login our website
