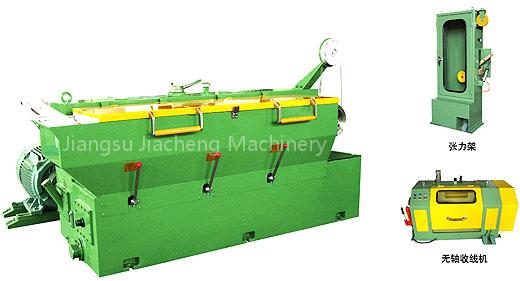

JCJX-17DH interdiate wire drawing machine(copper)
Listing ID#10211159
ModelJCJX-17DH
CategoryIndustrial Power Supplies
Industrial Power Supplies

JCJX-17DH interdiate wire drawing machine(copper)

Specifications

Brand
Jiacheng
Origin
Zhangjiagang City
Request Quote
Quick answer

JCJX-17DH interdiate wire drawing machine(copper) is a Industrial Power Supplies product. Key specs — Brand: Jiacheng; Origin: Zhangjiagang City.

Product Description

Rod breakdown machine technology parameter

Machine type JCJX-17DH
Control system Traditional analog type
Inverter control Dual Inverter control
Drawing dies No./Max. 17
Intlet diameter φ2.50∼φ3.50mm
Outlet diameter φ0.40∼φ1.60mm
Drawing line speed 2000m/min
Slip ratio of m/c 20%
Fix speed capstan slip ratio 15.5%
FrameIroned cast
CapstanTungsten plasma capstan
Main motor 55KW
Spooler motor 11KW
Capstandia.(Max.)φ250mm
Fix speed capstan dia. φ250mm
Spool bobbin size φ500/φ630mm or according to customers requirements
Send-out method Axis/without axis
Traversing unit Motor type
Transmission type High precision gear
Spooler control PID synchronous spooler
Detecting device Air balance by swing arm
Tension control Air pressure type
Max.loading capacity 500KG
Lubrication type Water innersion type
BrakeDisc brake
Power source380V 50/60HZ
Lubricant oil capacity100Liter/minute
Machine dimension (mm) 5000×2500×2000
Machine weight 3000KG
