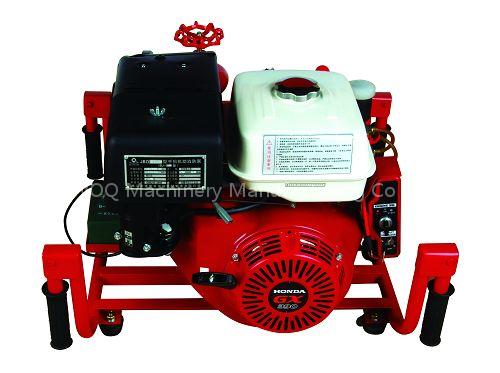

JBQ5.5/10 Portable Fire Pump

JBQ5.5/10 Portable Fire Pump produced by LC188 /LF188F/GX390 high efficient gasoline engine and the single-lev . It has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade, forest fire brigade, towns, rural areas, the mining industry and obligation fire brigade.

Technical parameters

Appearance dimension	L×W×H: 650×565×510mm;
Pump Intake	Sop Caliber: Φ65mm;
Pump outlet	Water Exceeding Caliger: Φ65mm;
Device weigh	Dry Weight: ≤62kg;
Maximum output power	Maxinmum Torque: 13Hp/3600r/min;
Starting way	Way Of Starting : Handle starter / electric starter;
Rated flow pump	At Rated Pressure: 660L/min/0.55Mpa;
Pump priming time	Priming Time : ≤20s;
Maximum suction depth	Sucation Head Max: 7m;
Pump lift	Yang Cheng : 65m

JBQ5.5/10 Portable Fire Pump produced by LC188 /LF188F/GX390 high efficient gasoline engine and the single-lev . It has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade, forest fire brigade, towns, rural areas, the mining industry and obligation fire brigade.

Technical parameters

Appearance dimension	L×W×H: 510×510×450mm;
Pump Intake	Sop Caliber: Φ65mm;
Pump outlet	Water Exceeding Caliger: Φ65mm;
Device weigh	Dry Weight: ≤62kg;
Maximum output power	Maxinmum Torque: 13Hp/3600t/min;
Starting way	Way Of Starting : Handle starter / electric starter;
Rated flow pump	At Rated Pressure: ≥780L/min;
Pump priming time	Priming Time : ≤20s;
Maximum suction depth	Sucation Head Max: 7m;
Pump lift	Yang Cheng : 65m
