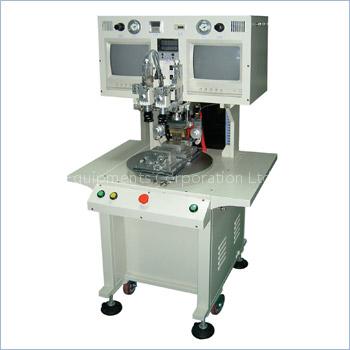

J40-D3 Rotary Pulse Heat Bonding Machine
Specifications
- Origin
- China
Quick answerJ40-D3 Rotary Pulse Heat Bonding Machine is a Business Services product. Key specs — Origin: China.
Product Description
Features: |
| High rigidness foundry and fully anti-aging treated machine body ensure long-run accuracy usage. |
| | Pulse heating, Step ping temperature rising available. Accurate temperature control sensing; A ll these assure bonding quality. |
| | Rotary platform, double switch button and emergency stop button enhance throughput and safety. |
| | 2 sets CCD alignment system ensures accuracy. |
| | Ergonomic design of table, convenient for production, saves cost and space. |
| | High stability, manual/auto/ footrest switch feature s , fit to different preferences. |
| | Suitable for all kinds of LCD, HSC, PCB interconnection bonding; TAB,TCP interconnection bonding and FPC, FFC, PCB soldering or solder bonding. |
|
|
|
Specification: |
Control System | Japan PLC | Pressure Range | 3-44kgf | Time Range | 1-100s | Throughput | 400-450PCS/H | Bond Head Accuracy | ± 0.01mm | Temperature Accuracy | ± 2.5 Degree Celsius | Product Min Pitch | pitch≥ 0.05mm | Product Max Size | 7 inches diagonal | Alignment Min Width | 10mm | CCD Magnification | 70-120 X | Temperature steps and range | 4(including start / away temperature) | Temperature rise time/ step | 2-2.5 s/step | Power | 2-3KW | Thermocouple | K Type | Weight | 150KG | Dimension | (L) 800mm × (W) 631mm × (H) 1355mm |
|
|
