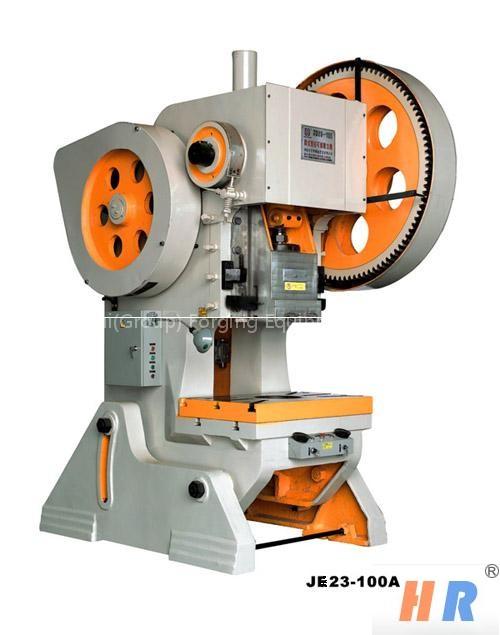

Name: J23 series Open Punching Machine
Brand: gutai
SKU: J23

J23 Series Open Back Inclinable press

Applications: J23 Series Open Back Inclinable press is a universal machine for forging, blanking punching, shallow drewing operations. It is widely used in electronic components, instrucment and meter, electric motor toy, automobile and truck industry.

specifications		R	unit	Model
specifications		R	unit	J23-3.15	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40	J23-63	J23-80	J23-100
Nominal capacity		Pe	KN	31.5	63	100	160	250	350	400	630	800	1000
Ram stroke		S	mm	25	35	45	55	65	100	80	100	120	140
Stroke frequency	High speed		200	170	145	120
Stroke frequency	Low speed		200				55	50	45	40	38	38
height		H2	mm	120	150	180	220	270	290	330	400	440	480
Shut height adjustment			mm	25	30	35	45	55	60	65	80	90	100
Depth of throat		C1	mm	90	110	130	160	200	200	250	310	350	380
Ram bottom tace dimension	L×R	a	10090	140	170	200	250	250	300	400	430	540
Ram bottom tace dimension	F×B	b	10090	120	150	180	220	220	260	360	360	480
Hole for punch shank	Dia.	d	2540	30	30	40	40	40	50	50	60	60
Hole for punch shank	depth	l	2540	55	55	60	60	60	70	70	75	75
Thickness of bolster		H3	mm	30	30	35	40	50	65	65	80	100	120
Max. angle of inclination		α	°	45	45	35	35	30	30	30	25	20	15
Height of bed		H1	mm				750	800	800	850	850	850	850
Overall dimension	F×B	A	670	780	900	1150	1345	1345	1721	1958	2060	2254
	L×R	B	534	620	665	847	950	950	1335	1500	1715	1790
	H	H	1310	1503	1658	1910	2130	2180	2488	2868	3290	3625
Distance between foundation bolts	F×B	a1				780	920	920	1060	1300	1360	1550
Distance between foundation bolts	L×R	b1				450	600	600	750	920	1010	1130
Motor power			KW	0.55	0.75	1.1	1.5	2.2	3	5.5	7.5	7.5	11
Weight(approximate)			Kg	194	400	576	1055	1780	2040	3540	5500	7285	8963

bed sizes T slot sizes

	dimensions	Bed sizes(mm)							Blaster sizes(mm)				T-slot sizes(mm)
Model		C	D	E	F	G	J	M	N	O	β	W	T	R	X	Y
J23-3.15		250	160							50		100	14	10	24	11
J23-6.3		310	200							60		128	14	10	24	11
J23-10		370	240							80		160	14	12	24	11
J23-16		450	300	310	0	240	160	210		100		310	14	14	24	11
J23-25		560	370	360	0	290	200	260	200	120	30°		18	16	30	14
J23-35		610	380	460	160	290	200	260	200	120	30°		18	16	30	14
J23-40		700	460	480	0	360	250	320	320	150	30°		22	20	36	16
J23-63		860	570	600	260	450	310	400	360	180	30°		22	22	36	16
J23-80		950	650	690	320	450	310	400	400	200	30°		22	22	36	16
J23-100		1080	710	840	320	530	370	480	440	200	30°		22	22	36	16
