Italy Hot Water Boiler - Container Boiler Room is a Boilers product. Key specs — Origin: Italy.
Product Description

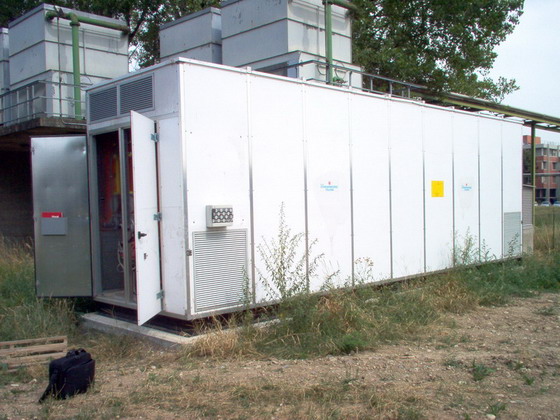

Specifications: The boiler room is realized inside a rectangular container case. The case protect num.2 hot water boilers including natural gas burners, chimneys, hot water piping distribution, natural gas piping distribution, water feeding line, expansion tanks, anti-condense pumps.
A recovery section on boiler smoke exhaust is installed to increase global efficiency and smoke condensation energy. An internal switchboard connects all internal electrical devices.
The boiler room has the following interface points/battery limits: 1 natural gas piping connection 1 hot water supply piping connection 1 hot water return piping connection 1 feed water piping connection 1 electrical cabling point 2 smoke exhaust chimneys (technical data and necessity to extend them in height to be verified) Access door is previewed on both short side of the container where the two burners are accessible.
Refer also to photos for more information and details.
Main technical Data: Model: 2 Boilers Standardkessel Italiana type ST-Plus 1700 (Product CE-085 AQ1132) Single Boiler Main technical data: Design Pressure: 5 bar Water flow with DT 10 K: 150 m3/h Water flow with DT 20 K: 75 m3/h Operative temperature: 85C Minimum boiler temperature: 70C Minimum return temperature: 55C Maximum operative temperature: 90C Maximum nominal capacity: 1.744 KW Minimum capacity: 726 KW Maximum gross capacity (focolare): 1.887 KW Minimum gross capacity (focolare): 771 KW Efficiency at 70C: 92,7 % Efficiency at 30%, a 50C: 94,3 % Single Burner technical data: Capacity: 480-1900 KW Natural gas flow: 195 Nm3/h Motor: 4,5 KW Status: The boiler room is new and never used and in good state.
Fabrication date is within October 2004 and June 2005.
