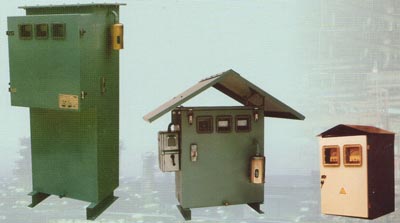

Iran (Islamic Republic of) Transformer Rectifier

Specifications: BORNA Transformer Rectifiers are usually manufactured in suit with customers requirements.

Features DC output, up to 200 V& 500A or more - - Single or three phase, AC input - Control: DC Voltmeter& Ammeter Automatic - Constant Potential Microprocessor base controller Manual - Continuously Variable( with variable auto transformer ) - DC Voltmeter& Ammeter - Timer Circuits - Surge Protection - Short Circuit Protection - Output Smoothing Further Features that are available include: Indoor/outdoor pattern Air or oil Cooled Oil immersed explosion proof for hazardous areas Wall/pole/Pad mounting Special finishes Sun shades Oil level/Temperature indicator Asper IEC, BS and IPS Standards HIGH SILICON IRON IMPRESSED CURRENT ANODES(TANTIRON) Two grades of Tantiron are used in this field- Tantiron C Details of these are given in the following text.

TANTIRON N -BS 1591/75. Grade Si 14 Generally referred to as normal for use in neutral soils, fresh water environments and applications including hot water tanks Storage tanks and filter units.

TANTIRON C - BS 1591/75, grade Si CR 14 4 Generally referred to as chrome - for use in aggreeive acidic or alkaline soils and sea water environment, including offshore platforms and coastal structures.
