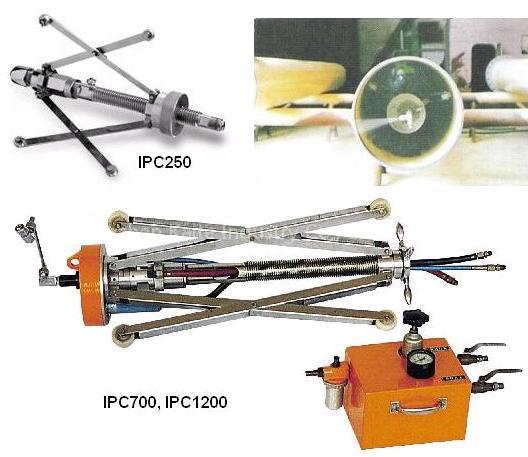

Internal pipe coater

Interior pipe coater is specially developed for coating of the interior surface of pipe or tube without need to rotate pipe or tube.

IPC250
Processable pipe: inner dia. 50-300mm
Processable pipe length: 15 meter
Dimension: dia 50 x L 280mm
Weight: 0.9kg
Supplied with a manual spray gun and 5 meter high pressure paint hose

IPC700

processable pipe: inner dia. 250-700mm

processable pipe length: 15 meter

air inlet pressure: 0.4-0.6Mpa

Tip roatry speed: 10-100 rpm

Dimension: 250x250x630mm

Weight: 12.8kg

Supplied with control panle, filters, pressure gauge, pressure regulator, 2 pcs of 15 mtere PU hoses.

IPC1200

processable pipe: inner dia. 300-1200mm

processable pipe length: 15 meter

air inlet pressure: 0.4-0.6Mpa

Tip roatry speed: 10-100 rpm

Dimension: 300x300x950mm

Weight: 18kg
Supplied with control panle, filters, pressure gauge, pressure regulator, 2 pcs of 15 mtere PU hoses.
