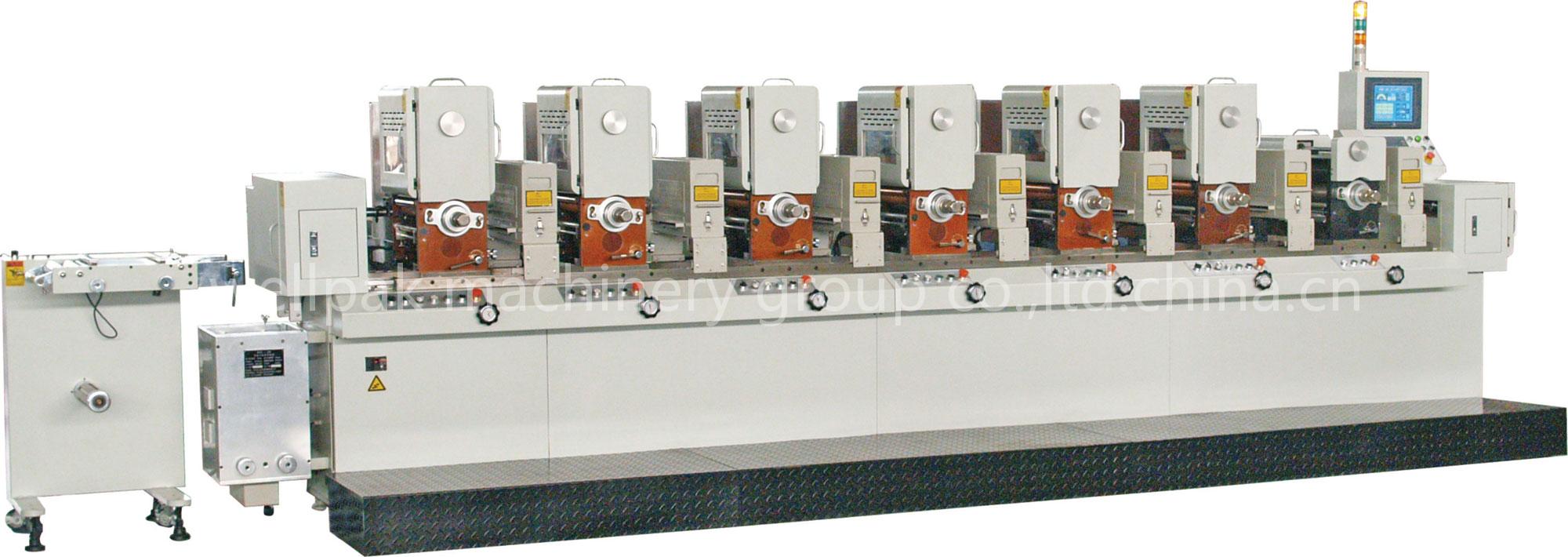

Intermittent High-speed Label Printing Machine

Feature:
1. This machine is characterized by shaftless-type, control every servo motor of each roll in printing driver accurately, which make the optimization control to the machine state.
2. Centralized oil lubrication system.
3. The unwinding adopts the vacuum pull drum, which is reducing the bleeding area and reducing the cost.
4. The unique design of 13 rubber rollers facilitates reducing ghost
5. First adopt color code photoelectric sensing technology to overprint automatically, it is improve the precision of overprint and shorten the prepare time of pre-print.
6. Centralized pressure unlock/fasten device at each unit
7. The printing, UV vanishing, magnetic hob die cutting, waste discharging and rewinding can be finished at one time.
8. It is equipped with ink washer which improves the efficient greatly.
9. Easy withdrawal plate cylinder.
10. It can perform printing on many special materials, such as film. It also can do non gripper printing.
11. This machine is suitable for printing multi-variety labels, and it is the first choice of trade mark factory for printing upscale adhesive trade marks.

Technical parameters

Max. web width		250mm	280mm	350mm
Max. printing width		230mm	265mm	330mm
Highest print speed		250times/min	250times/min	250times/min
Dimensions		2-9color	2-9color	2-9color
Print length	intermittent	20-260mm	20-260mm	20-260mm
	rotary	304mm	304mm	393mm
Max. unwinding diameter		600mm	600mm	600mm
Max. rewinding diameter		600mm	600mm	600mm
Overall dimension(L×W×H)		6800×1600×1500mm	6800×1600×1500mm	6800×1600×1500mm
Machine weight(about)		6000kg	6700kg	7000kg
Machine weight(gross)		7300kg	8000kg	8500kg
Electrical source Main motor		380V/AC(Three-Phase) 50/60Hz 30A 12KVA

Optional collocation:
Hob die-cutting equipment (magnetic roller)
Flexible ultraviolet radiation gluazing equipment
Ultraviolet radiation UV drying equipment (breadth of lamp chest is within 140mm)
CCD camera
