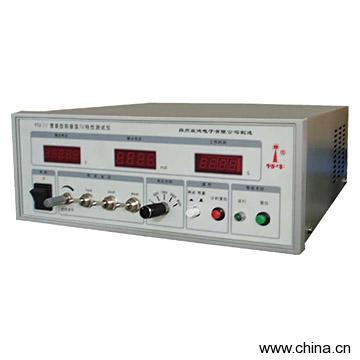

Intelligent Anodic Foil TV Characteristic Tester

Model No.:YTV-12 Product Origin:China Brand Name:SHEKONIC Price Terms:FOB Shanghai, CFR, CIF Payment Terms:T/T 30% deposit, the balance against B/L, L/C Certification:ISO9001 Description:Product Name: Intelligent Anodic Foil TV Characteristic TesterModel Number: YTV-12Place of Origin: ChinaThis model provides current (fixed and adjustable), charging, testing aluminum foil and electrolyte's characteristics.

Higher accuracy and stability, easy to operate panel: easy software operate interface, displays easily curve of voltageand current of electrolyte.Features:Hardware part:1) Testing aluminum foil's TV characteristic or leakage current2) CC (constant current): a) Adjustable: continually adjustable from 0.1 to 20mAb) Fixed: switch for selecting current (UA grade) (custom-made)3) Output voltage: 4-position switch: 50V, 100V, 200V, 800V (custom-made, only CC, not CV)4) Two states (2-position switch): a) Preset currentb) Testing for TV characteristics5) Automatically time in testing state, can reset at any moment 6) V, A, S display accuracy and stability, digitalSoftware part:1) Intelligent: automatically displays the result according to the testing conditionpreset in "determinant" section2) Easy looking up: automatically displays the curve of the current and voltage ofthe aluminum foil and electrolyte, the operator can look up the voltage and current at any moment 3) Other function: looks up the testing result by delineation; saves the result todatabase for looking up and print: capturing for analyzing the characteristicsof products, for improving the quality4) Sample: T/T 100%Main applications:1) Special tester for testing aluminum foil's TV characteristics, capacitor's voltage2) For testing dynatron, diode, SCR and other electron component's voltageInner packing:Wooden caseOuter packing:Iron drums Technical characteristics:
