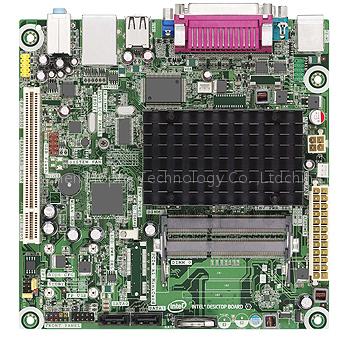

Intel D525MWV Mini-ITX Motherboard
Specifications
- Brand
- hoply
- Origin
- China (Mainland)
Quick answer
Intel D525MWV Mini-ITX Motherboard is a Car Key Accessories product. Key specs — Brand: hoply; Origin: China (Mainland).
Product Description
mini-ITX motherboard
Dual Core Atom D525 2x1.8Ghz
Intel NM10 Chipset
2x DDR3 SO-DIMM (max 4GB)
2x SATA (3GBs)
1x USB Header for SSD
1x PCI
1x Parallel
4 USB 2.0
1x LAN 10/100/1000MBit (Realtek)
miniPCI-Expres slot
nbsp
Dual Core Atom D525 2x1.8Ghz
Intel NM10 Chipset
2x DDR3 SO-DIMM (max 4GB)
2x SATA (3GBs)
1x USB Header for SSD
1x PCI
1x Parallel
4 USB 2.0
1x LAN 10/100/1000MBit (Realtek)
miniPCI-Expres slot
nbsp
| Name | D525MWV |
| Processor | Intel Atom Processor D525 (Dual Core) |
| 1.8GHz | |
| Chipset | Intel NM10 Express Chipset |
| L2 Cache | 512 KB x 2 L2 Cashe |
| System Memory | Single channel DDR3 1066/800 MHz |
| 2x DIMMs (max 4GB) | |
| Graphics | Integrated graphic VGA port & on board LVDS (optional) |
| Power | 24 Pin ATX |
| Connectors (rear) | 1x D-SUB15 (VGA) |
| 1x LAN 10/100/1000MBit (Realtek) | |
| 3x Sound (Line Out, Line In, Microphone) | |
| 2x PS2 | |
| 4x USB2.0 | |
| Audio | Realtek High Definition Audio (ALC) Incl multi-stream support |
| Connectors (internal) | 1x PCI |
| 1x Mini PCIex | |
| AUDIO (Front panel) | |
| AUDIO (SPDIF) | |
| 2x USB | |
| 2x SATA (3GBs) | |
| 2x COM (Serial) | |
| 1x Parallel | |
| Included | Latch for Half-mini PCIe Card |
| I/O ATX rear plate | |
| SATA cable | |
| Drivers CD | |
| Form Factor | mini-ITX (170mm X 170mm) |
| Passive thermal solution, Z-height 35mm | |
| Additional comments | Windows Vista Basic WHQL certified |
| Windows 7 Starter/ Home basic support |
